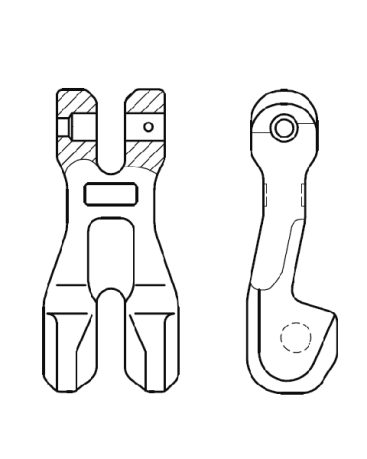

SHORTENING CLUTCH – NO LOCKING
Shortening Clutches provide an efficient method for adjusting chain sling length without reducing the Working Load Limit. The clevis design enables quick chain connection. Not suitable for use as a bottom fitting in back-hooking or reeving applications.
- Description
Description
Features
- Marked with Chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Conforms to AS 3776, Test Certificates available upon request
Standards
- AS3776/EN1677
Specifications
| CHAIN SIZE (mm) | WLL (tonne) | WEIGHT (kg) |
|---|---|---|
| 6 | 1.1 | 0.17 |
| 7 - 8 | 2 | 0.41 |
| 10 | 3.2 | 0.97 |
| 13 | 5.3 | 2 |
| 16 | 8 | 3.32 |
| 18 - 20 | 12.5 | 6.2 |
| 22 | 15 | 8.5 |
Specifications are subject to change without notice
