OMEGA LINK
Omega Links are commonly used with recessed head rings and chain in chain sling assemblies. They are also a versatile fitting suited to variable-type slings across a range of lifting applications.
- Description
Description
Features
- Marked with chain size, grade and branded with manufacturer quality mark
- Made from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS 3776
Specifications

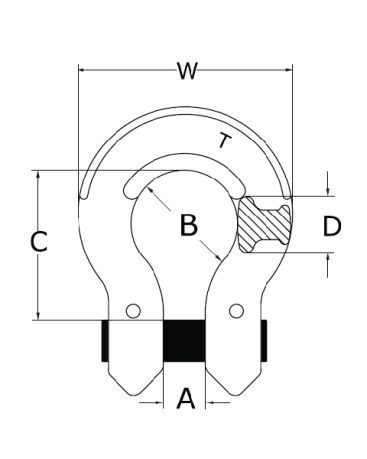

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | W (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1.1 | 0.12 | 8 | 20.5 | 25 | 12 | 41 |
| 8 | 2 | 0.22 | 10 | 23.5 | 35 | 16 | 52 |
| 10 | 3.2 | 0.36 | 12 | 31.5 | 40.5 | 17 | 62 |
| 13 | 5.3 | 0.71 | 15 | 41 | 54 | 20 | 81 |
| 16 | 8 | 1.3 | 19 | 49.5 | 64 | 26 | 99 |
Subject to change without notice
