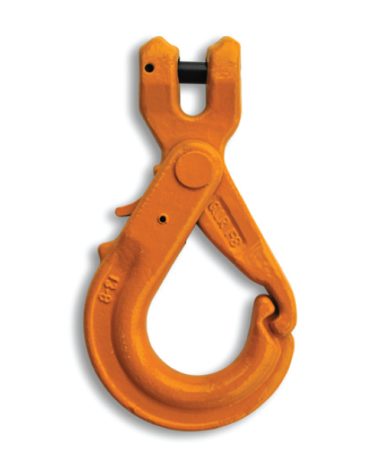

GRIP SELF LOCKING HOOK – CLEVIS
Grip Self-Locking Hooks stay open until the load is applied, automatically locking for secure lifting. The hook will not open unless the rear trigger is pressed. The clevis design allows easy chain connection and features a unique profile that prevents side loading of the latch.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS 3776
- Spare Trigger Kits and Load Pins are available
Specifications

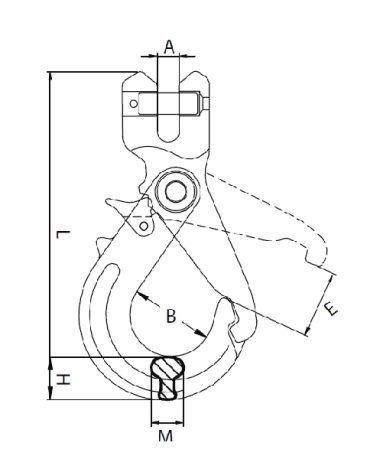

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | H (mm) | E (mm) | L (mm) |
|---|---|---|---|---|---|---|---|
| 7/8 | 2 | 0.8 | 9.5 | 40 | 21.5 | 36 | 149 |
| 10 | 3.2 | 1.1 | 12 | 50 | 26.2 | 44 | 189 |
| 13 | 5.3 | 2 | 15 | 60 | 31 | 54 | 229 |
| 16 | 8 | 4.2 | 18 | 70 | 39.5 | 63 | 270 |
Subject to change without notice
