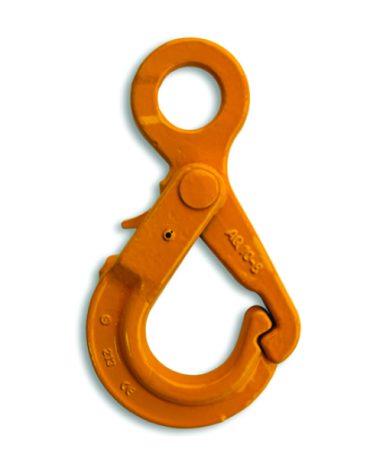

GRIP SELF LOCKING HOOK – EYE
Grip Self-Locking Hooks remain open until the load is applied and automatically lock for secure lifting. Releasing the hook requires pressing the rear trigger. The eye design allows easy connection to chain connectors, shackles, and wire rope slings.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS 3776
- Spare Trigger Kits are available
Specifications

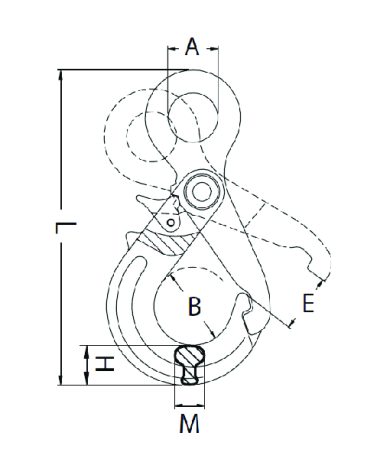

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | E (mm) | H (mm) | L (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|
| 7 - 8 | 2 | 0.75 | 25 | 40 | 34 | 21.5 | 163 | 18 |
| 10 | 3.2 | 1.2 | 32 | 50 | 42 | 26.5 | 201.5 | 22.5 |
| 13 | 5.3 | 1.93 | 40 | 60 | 50 | 31 | 243.5 | 29 |
| 16 | 8 | 3.4 | 50 | 70 | 60 | 39.5 | 298 | 35 |
Subject to change without notice
