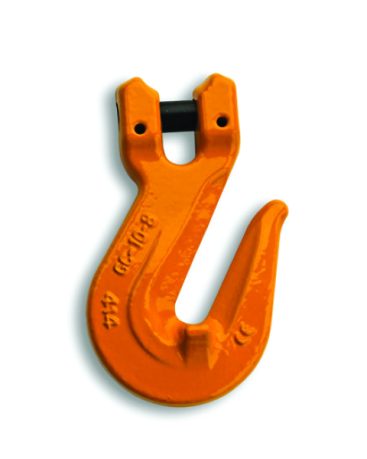

SHORTENING HOOK – CLEVIS GRAB
Clevis Grab Hooks allow for easy adjustment of chain sling length without reducing the Working Load Limit. Fitted with supporting lugs for secure load engagement, the clevis design ensures quick and simple chain connection.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Made from G80 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS3776
Specifications

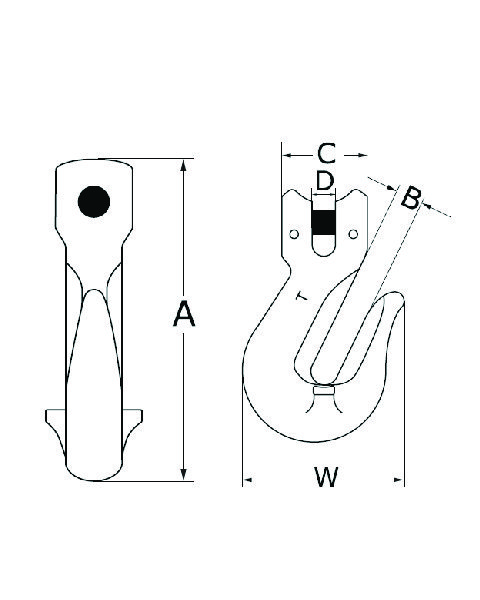

| CHAIN (mm) | WLL (tonne) | WEIGHT (kg) | A | B | C | D | W |
|---|---|---|---|---|---|---|---|
| 6 | 1.1 | 0.28 | 78 | 8 | 32 | 7.5 | 41 |
| 7, 8 | 2 | 0.3 | 108 | 11 | 36 | 9 | 57 |
| 10 | 3.2 | 0.95 | 127 | 13 | 46 | 12 | 70 |
| 13 | 5.3 | 1.97 | 163 | 16 | 59 | 15 | 89 |
| 16 | 8 | 3.45 | 204 | 20 | 70 | 17.5 | 109 |
| 18, 20 | 12.5 | 5.3 | 243 | 23 | 80 | 23 | 130 |
| 22 | 15 | 7.8 | 280 | 26 | 98 | 25.5 | 151 |
| 26 | 21.2 | 14.5 | 309 | 30 | 110 | 30 | 175 |
Subject to change without notice
