SWIVEL SELF-LOCKING HOOK – EYE
Eye Swivel Self-Locking Hooks feature a ball bearing for smooth rotation under load, helping to reduce sling twist during lifting. The enlarged eye design accommodates larger shackles without requiring disassembly of the hook.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Ball bearing swivel allows the hook to rotate under full load
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS 3776
- Spare Trigger Kits and Swivel Bow head are available
Specifications

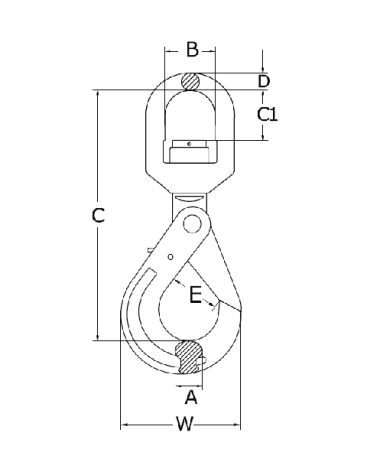

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | C1 (mm) | D (mm) | E (mm) | W (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 1.1 | 0.71 | 15 | 32.5 | 164.5 | 35 | 11.5 | 28 | 69.7 |
| 7 - 8 | 2 | 1.12 | 20 | 36 | 204 | 42 | 13 | 36.5 | 88 |
| 10 | 3.2 | 2 | 26 | 42 | 240.5 | 50 | 15.5 | 45 | 107.7 |
| 13 | 5.3 | 4 | 32.5 | 50 | 284.5 | 60 | 17 | 53.6 | 137 |
| 16 | 8 | 7.3 | 38 | 61 | 350.5 | 65 | 21.5 | 61 | 165.5 |
| 18 - 20 | 12.5 | 11.6 | - | 76 | 399.5 | 75 | 26.5 | 100 | - |
| 22 | 15 | 16 | - | 97 | 461 | 97 | 33 | 98 | - |
| 26 | 21.2 | 21.5 | - | 123 | 536.5 | 115 | 42 | 110 | - |
Subject to change without notice
