GRADE P CHAIN
Manufactured from higher tensile steel that is hardened and tempered, Grade P Chain offers twice the working load limit (WLL) of Grade L Chain. It is suitable as a substitute where larger Grade L Chain is normally required.
- Description
Description
Features
- Sizes available from 10mm to 16mm
- Test certificate available on request
- Grade P chain is used in anchor chain, mooring applications
- Long proof coil chain is used in agricultural and barrier applications
Specifications

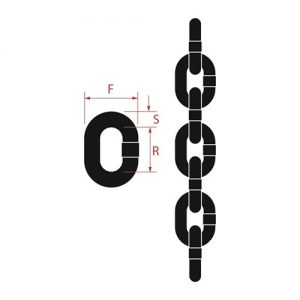

| CHAIN SIZE | MWL (t) | M/100kg | LINKS/M | S (mm) | R (mm) | F (mm) |
|---|---|---|---|---|---|---|
| 10 | 2.00 | 43.9 | 33.60 | 10.00 | 29.80 | 34.3 |
| 13 | 3.38 | 28.9 | 26.30 | 12.50 | 38.00 | 42.5 |
| 16 | 5.12 | 17.5 | 20.90 | 16.00 | 47.80 | 54.9 |
