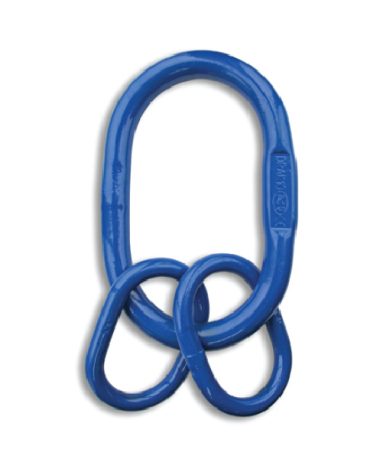

OVERSIZED HEAD RINGS
European-made Grade 100 Oversized Head Rings are specifically designed to fit large crane hooks. Built for heavy-duty lifting applications, they offer exceptional strength, durability, and compatibility with larger lifting setups.
- Description
Description
Features
- Made in accordance with EN 1677-4
- DIN 15401
Specifications

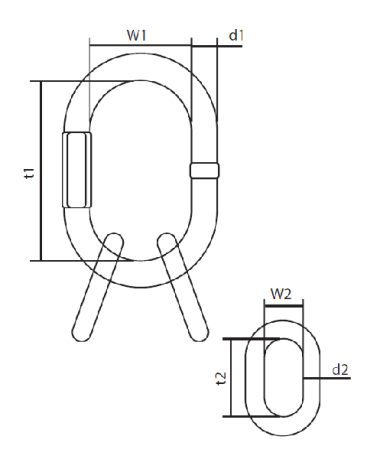

| SIZE (mm) | WLL (tonnes) 60° | WEIGHT (kg) | D1 (mm) | T1 (mm) | W1 (mm) | D2 (mm) | T2 (mm) | W2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 10 | 8 | 7.1 | 30 | 340 | 180 | 18 | 135 | 75 |
| 13 | 14 | 13 | 40 | 340 | 180 | 22 | 160 | 90 |
| 16 | 21.2 | 14.6 | 40 | 340 | 180 | 26 | 180 | 100 |
Subject to change without notice
