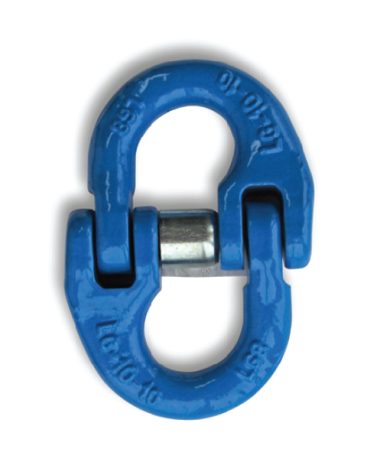

CHAIN CONNECTOR
Chain Connectors are versatile fittings used to securely join head rings, chain, hooks, and other lifting components. They provide a strong and reliable connection point, essential for safe and efficient lifting assemblies.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacture quality mark
- Made from G100 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request
- Manufactured and tested in accordance to AS 3776
Specifications

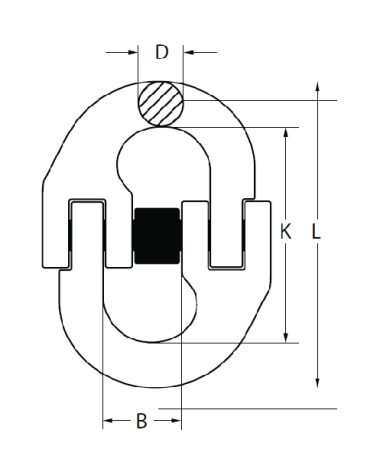

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | B (mm) | K (mm) | D (mm) | L (mm) |
|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.1 | 14 | 44 | 8 | 60 |
| 8 | 2.5 | 0.22 | 18 | 61 | 10 | 84 |
| 10 | 4 | 0.45 | 23 | 72 | 13 | 97 |
| 13 | 6.7 | 1.15 | 27 | 89 | 17 | 127 |
| 16 | 10 | 1.75 | 33 | 103 | 21 | 145 |
| 20 | 15.6 | 2.7 | 42 | 116 | 24 | 175 |
| 22 | 19 | 4.02 | 48 | 135 | 27 | 193 |
| 26 | 26.5 | 5.1 | 61 | 164 | 32 | 228 |
| 32 | 39.3 | 8.5 | 80 | 194 | 40 | 274 |
Subject to change without notice
