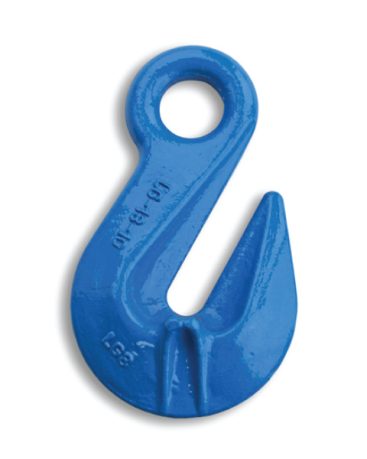

GRAB HOOK – EYE
Grade 100 Eye Grab Hooks are designed to shorten chain sling legs and can also be used for back-hooking. Supporting lugs ensure there is no reduction to the Working Load Limit. The eye design allows easy and secure connection to fittings such as chain connectors and master links.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacture quality mark.
- Made from G100 alloy steel with safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
Specifications

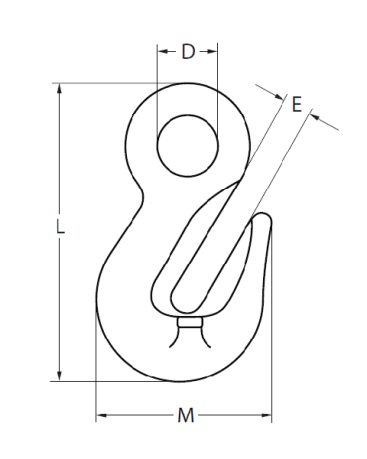

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | D (mm) | E (mm) | M (mm) | L (mm) |
|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.2 | 14 | 8 | 43 | 70 |
| 8 | 2.5 | 0.28 | 18 | 11 | 53 | 91 |
| 10 | 4 | 0.72 | 22 | 13 | 42 | 126 |
| 13 | 6.7 | 1.6 | 28 | 16 | 96 | 162 |
| 16 | 10 | 2.45 | 36 | 19 | 112 | 182 |
| 20 | 16 | 4.72 | 43 | 24 | 143 | 225 |
| 22 | 19 | 8.2 | 48 | 27 | 160 | 259 |
| 26 | 26.5 | 11.35 | 52 | 34 | 190 | 311 |
| 32 | 40 | 20.65 | 64 | 41 | 229 | 373 |
Subject to change without notice
