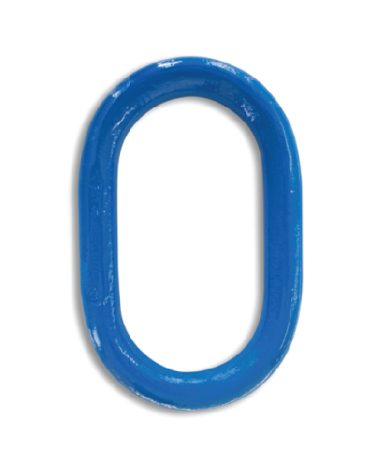

WELDED MASTERLINK – SINGLE
Grade 100 Welded Masterlinks are designed for use with single or double leg chain or wire rope slings. Engineered for strength and durability, they provide a reliable connection point in heavy lifting applications.
- Description
Description
Features
- Marked with single and double chain sizes, designation, grade with manufacture quality mark
- Manufactured from G100 alloy steel with safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776
- Test Certificates available upon request
Specifications

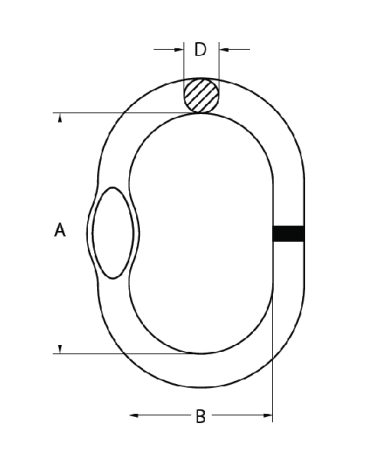

| SIZE 1 leg (mm) | SIZE 2 leg (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | D (mm) |
|---|---|---|---|---|---|---|
| 8 | 6 | 3.5 | 0.4 | 110 | 60 | 16 |
| 10 | 8 | 5 | 0.7 | 135 | 75 | 18 |
| 13 | 10 | 7.6 | 1.5 | 160 | 90 | 23 |
| 16 | 13 | 11.6 | 2.2 | 180 | 100 | 27 |
| 20 | 16 | 17.3 | 5.1 | 200 | 110 | 33 |
| 22 | 20 | 27.7 | 6.2 | 260 | 140 | 36 |
| 26 | 22 | 32.9 | 12.8 | 340 | 180 | 45 |
| 32 | 26 | 45.8 | 16.2 | 350 | 200 | 50 |
| - | 32 | 69.2 | 27 | 400 | 200 | 60 |
| - | - | 90 | 45 | 460 | 250 | 70 |
Subject to change without notice
