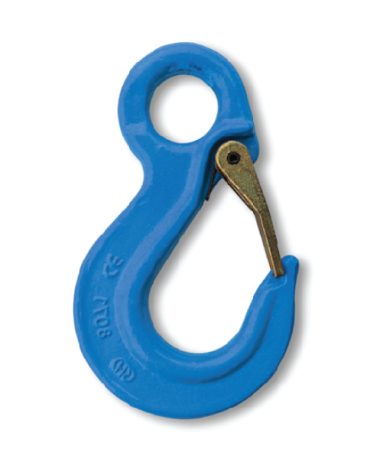

SLING HOOK – EYE
Grade 100 Eye Sling Hooks are general-purpose hooks suitable for a wide range of slinging applications. Fitted with a cast safety latch for added security, the eye design allows easy connection to chain connectors, master links, or wire rope slings.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacturer quality mark
- Manufactured from G100 alloy steel with a safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776
- Test Certificates available upon request
Specifications

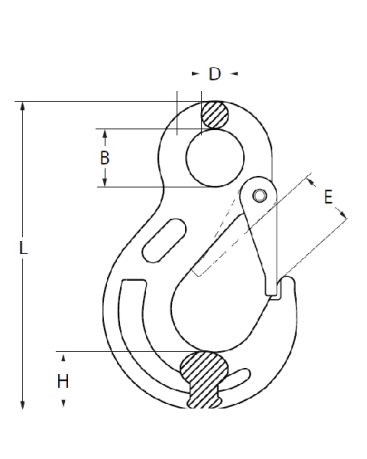

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | B (mm) | D (mm) | E (mm) | H (mm) | L (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.32 | 20 | 10 | 18 | 21 | 111 |
| 8 | 2.5 | 0.6 | 25 | 11 | 25 | 27 | 137 |
| 10 | 4 | 1.2 | 34 | 16 | 28 | 33 | 171 |
| 13 | 6.7 | 2.2 | 43 | 19 | 38 | 43 | 219 |
| 16 | 10 | 3.5 | 50 | 24 | 44 | 50 | 260 |
| 20 | 16 | 7.15 | 55 | 27 | 52 | 56 | 298 |
| 22 | 19 | 8.75 | 64 | 31 | 73 | 67 | 267 |
| 26 | 27 | 13.2 | 66 | 32 | 81 | 75 | 301 |
| 32 | 40 | 17.5 | 81.5 | 39 | 82 | 89 | 458 |
Subject to change without notice
