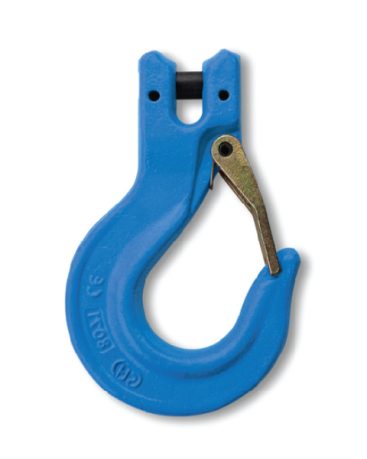

SLING HOOK – CLEVIS
Grade 100 Clevis Sling Hooks are versatile, general-purpose hooks ideal for a wide range of slinging applications. They feature a cast safety latch for secure load handling and a clevis design that allows quick and easy connection to chain.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacturer quality mark
- Manufactured from G100 alloy steel with a safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776
- Test Certificates available upon request

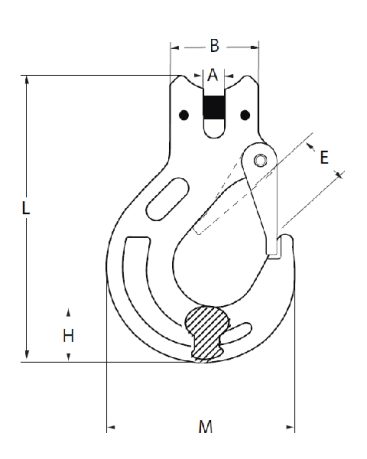

Specifications
| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | E (mm) | H (mm) | M (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.33 | 7 | 32 | 18 | 21 | 68 | 109 |
| 8 | 2.5 | 0.7 | 9 | 37 | 25 | 27 | 88 | 134 |
| 10 | 4 | 1.3 | 12 | 48 | 28 | 33 | 105 | 161 |
| 13 | 6.7 | 2.3 | 15 | 59 | 38 | 42 | 134 | 203 |
| 16 | 10 | 3.6 | 17 | 70 | 44 | 50 | 160 | 248 |
| 20 | 16 | 7.3 | 25 | 85 | 52 | 56 | 190 | 297 |
| 22 | 19 | 12.1 | 27 | 100 | 66 | 62 | 214 | 326 |
| 26 | 26.5 | 16.1 | 30.5 | 118 | 72 | 73 | 248 | 383 |
| 32 | 40 | 27.2 | 37.5 | 149 | 87 | 87 | 281 | 474 |
Subject to change without notice
