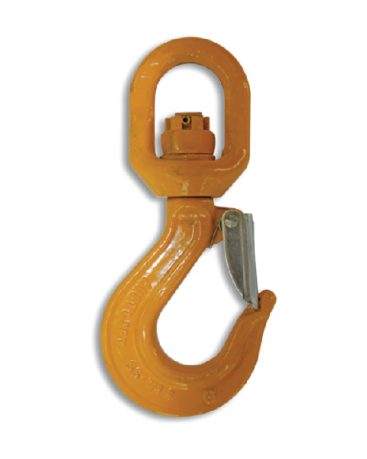

SWIVEL HOOK WITH SAFETY CATCH (BALL BEARING AVAILABLE)
Swivel Sling Hooks feature a plain bush bearing that prevents rotation under load, enhancing stability during lifting. Fitted with a heavy-duty safety latch for secure load handling. Ball bearing swivel option available for free rotation under no-load conditions.
- Description
Description
Features
- Marked with Chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Test Certificates available upon request
- Conforms to AS 3776
- Spare Latch Kits are available
Specifications

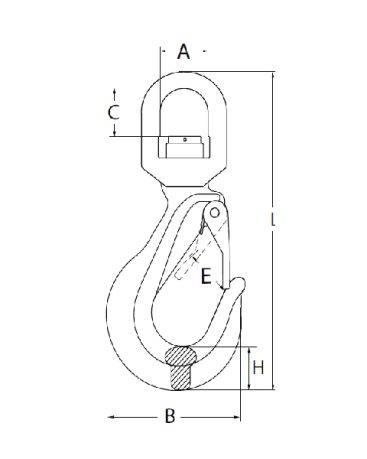

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
| 7 - 8 | 2 | 0.85 | 36 | 88.5 | 26 | 27 | 23.5 | 190 |
| 10 | 3.2 | 1.54 | 42 | 104.5 | 34 | 32 | 29.5 | 233 |
| 13 | 5.3 | 3.04 | 49 | 135 | 41 | 40 | 38 | 291.5 |
| 16 | 8 | 5.36 | 61 | 161 | 53 | 45 | 45.4 | 352 |
Specifications are subject to change without notice
