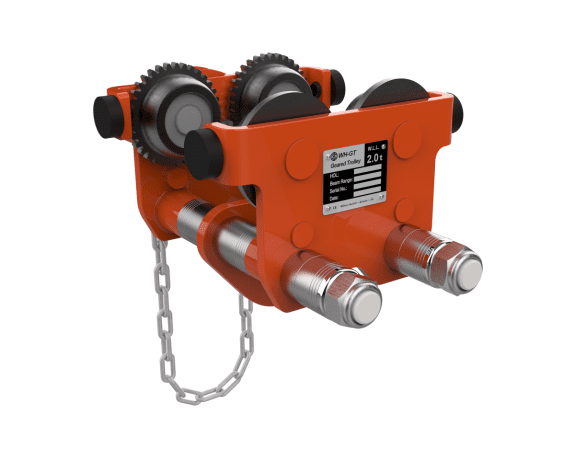

WH GT Geared Trolley

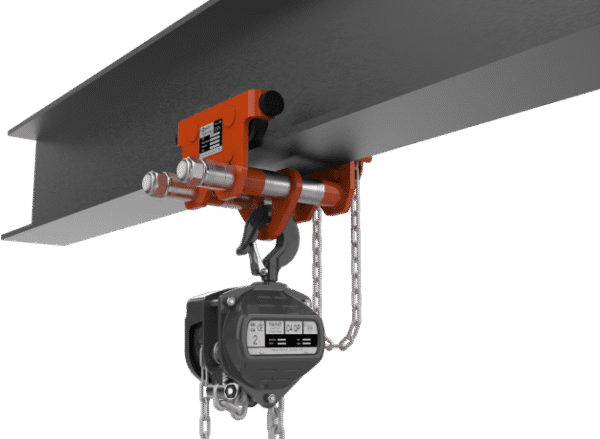

The William Hackett Geared Trolley is designed, developed and tested in the UK. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley is manovered along the beam by pulling the handchain which is attached to a drive gear. This is helpful when the trolley is suspended out of reach. We can offer training on safe use and inspection.
- Description
Description
Features
- WLL Range – 500 kg – 10t
- Proof load test – 1.5 x WLL
- Finish – Orange powder coated paint
- Bars – Twin bar, zinc plated for added corrosion protection
- Extended bars – Can be supplied on request for wider beam widths
- End stoppers – To prevent damage
- Anti tilt – To prevent damage or loss of load
- Wheels – Universal wheels to suit tapered or flat flange
- Handchain – It has been designed so that the bottom of the hand chain loop is 500mm from ground level.
Specifications

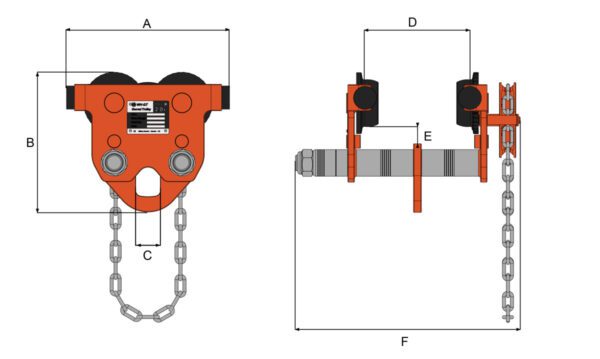

| WLL tonnes | Min. Radius of Curve m | A mm | B mm | C mm | E mm | I Beam Width Standard Range 1 D mm | I Beam Width Extended Range 2 D mm | Standard Range 1 F mm | Extended Range 2 F mm | Standard Range 1 Mass kg | Extended Range 2 Mass kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.50 | 0.8 | 199 | 159 | 22 | 28 | 50 - 203 | - | 322 | - | 7.6 | - | |
| 1.00 | 0.9 | 221 | 185 | 30 | 30 | 64 - 203 | 64 - 305 | 326 | 431 | 9.8 | 11.2 | |
| 2.00 | 1.0 | 288 | 226 | 36 | 36 | 88 - 203 | 88 - 305 | 346 | 448 | 15.7 | 17.6 | |
| 3.20 | 1.2 | 334 | 279 | 45 | 45.5 | 100 - 203 | 100 - 305 | 365 | 472 | 26.4 | 28.9 | |
| 5.00 | 1.3 | 407 | 311 | 55 | 50 | 114 - 203 | 114 - 305 | 381 | 483 | 39.6 | 43.4 | |
| 10.00 | 2.0 | 525 | 383.5 | 65 | 60 | 124 - 203 | 124 - 305 | 403 | 506 | 70.5 | 75.0 |
