WH PT Push Trolley

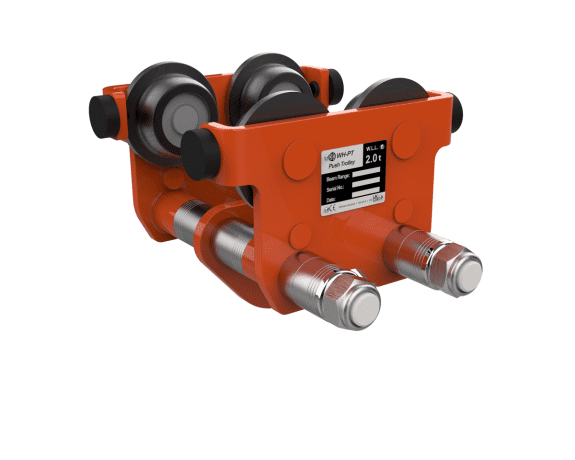

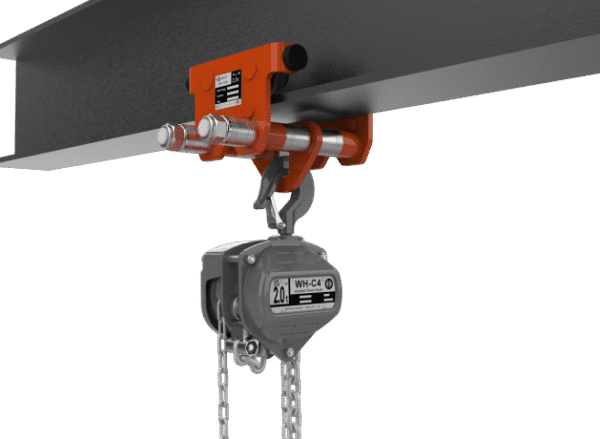

The William Hackett Push Trolley is designed, developed and tested in the UK. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley can be pushed along the beam and has rubber end stops to prevent damage. The hanging plate has a large eye which can accept various sized lifting hooks. We can offer training on safe use and inspection.
- Description
Description
Features
- WLL Range – 500 kg – 10t
- Proof load test – 1.5 x WLL
- Finish – Orange powder coated paint
- Bars – Twin bar, zinc plated for added corrosion protection
- Extended bars – Can be supplied on request for wider beam widths
- End stoppers – To prevent damage
- Anti tilt – To prevent damage or loss of load
- Wheels – Universal wheels to suit tapered or flat flange
Specifications

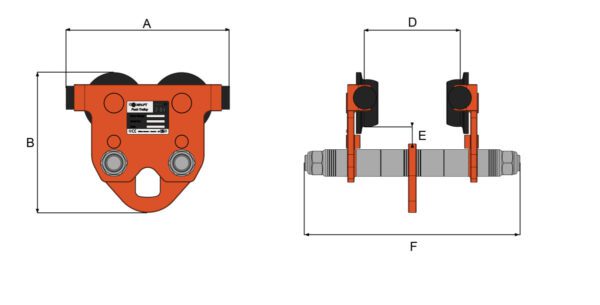

| WLL t | Min. Radius of Curve m | A mm | B mm | C mm | E mm | I Beam Width Standard Range 1 D mm | I Beam Width Extended Range 2 D mm | Standard Range 1 F mm | Extended Range 2 F mm | Standard Range 1 Mass kg | Extended Range 2 Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.50 | 0.80 | 190 | 159 | 22 | 28 | 50 - 203 | - | 294 | - | 6.9 | - |
| 1.00 | 0.90 | 221 | 185 | 30 | 29.5 | 64 - 203 | 64 - 305 | 309 | 412 | 9.0 | 10.5 |
| 2.00 | 1.00 | 288 | 226 | 36 | 36 | 88 - 203 | 88 - 305 | 327 | 431 | 14.6 | 16.5 |
| 3.20 | 1.20 | 334 | 279 | 45 | 45.5 | 100 - 203 | 100 - 305 | 351 | 457 | 25.2 | 27.7 |
| 5.00 | 1.30 | 407 | 311 | 55 | 50 | 114 - 203 | 114 - 305 | 366 | 470 | 38.3 | 42.0 |
| 10.00 | 2.00 | 525 | 383.5 | 65 | 60 | 124 - 203 | 124 - 305 | 392 | 495 | 68.5 | 73.0 |
