WH GT ATEX Geared Trolley
The William Hackett Atex Geared Trolley is designed, developed and tested in the UK. It complies with the requirements of ATEX Directive 2014 / 34 / EU?and Machinery?Directive 2006 / 42 / EC. We have analysed all components of the WH GT Geared Trolley and identified the components that have a potential spark risk. A spark can be generated from fast moving components such as the wheels. The WH ATEX Geared trolley uses surface technology to develop the components making it safe to use in hazardous environments. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley is manovered along the beam by pulling the handchain which is attached to a drive gear. This is helpful when the trolley is suspended out of reach. We can offer training on safe use and inspection.
- Description
Description
Features
- WLL Range – 500 kg – 2t.
- Proof load test – 1.5 x WLL.
- Finish – Orange powder coated paint and copper plated surface technology.
- Bars – Twin bar, zinc plated for added corrosion protection.
- Anti Spark components – For use in hazardous enviroments.
- Extended bars – Can be supplied on request for wider beam widths.
- End stoppers – To prevent damage.
- Anti tilt – To prevent damage or loss of load.
- Wheels – Universal wheels to suit tapered or flat flange.
- Complies with – The requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC.
Specifications

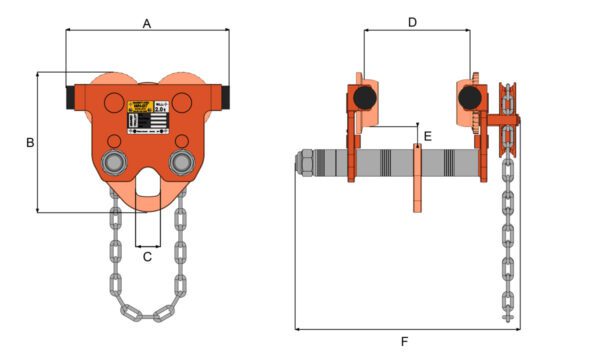

| WLL t | Min. Radius of Curve m | A mm | B mm | C mm | E mm | I Beam Width Standard Range D mm | I Beam Width Extended Range 2 D mm | Standard Range 1 F mm | Extended Range 2 F mm | Standard Range 1 Mass kg | Extended Range 2 Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.50 | 0.8 | 199 | 159 | 22 | 28 | 50 - 203 | - | 322 | - | 7.6 | - |
| 1.00 | 0.9 | 221 | 185 | 30 | 30 | 64 - 203 | 64 - 305 | 326 | 431 | 9.8 | 11.2 |
| 2.00 | 1.0 | 288 | 226 | 36 | 36 | 88 - 203 | 88 - 305 | 346 | 448 | 15.7 | 17.6 |
| 3.20 | 1.20 | 334 | 279 | 45 | 45.5 | 100 - 203 | 100 - 305 | 365 | 472 | 26.4 | 28.9 |
| 5.00 | 1.30 | 407 | 311 | 55 | 50 | 114 - 203 | 114 - 305 | 381 | 483 | 39.6 | 43.4 |
| 10.00 | 2.00 | 525 | 383.5 | 65 | 60 | 124 - 203 | 124 - 305 | 403 | 506 | 70.5 | 75.0 |
