WH PT ATEX Push Trolley

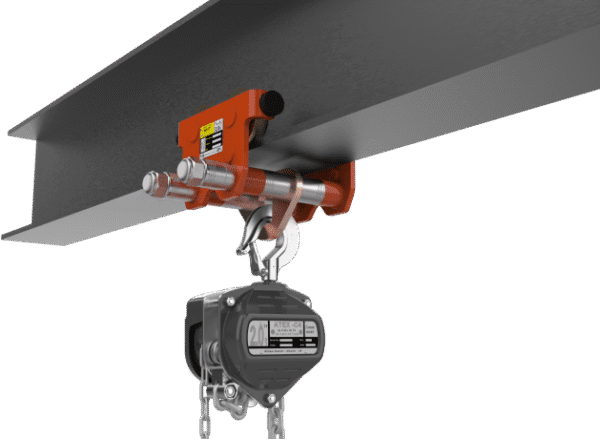

The William Hackett Atex Push Trolley is designed, developed and tested in the UK. It complies with the requirements of ATEX Directive 2014 / 34 / EU?and Machinery?Directive 2006 / 42 / EC. We have analysed all components of the WH PT Push Trolley and identified the components that have a potential spark risk. A spark can be generated from fast moving components such as the wheels. The WH ATEX Push trolley uses surface technology to develop the components making it safe to use in hazardous environments. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley can be pushed along the beam and has rubber end stops to prevent damage. We can offer training on safe use and inspection.
- Description
Description
Features
- WLL Range – 500 kg – 5t.
- Proof load test – 1.5 x WLL.
- Finish – Orange powder coated paint and copper plated surface technology.
- Bars – Twin bar, zinc plated for added corrosion protection.
- Anti Spark components – For use in hazardous enviroments.
- Extended bars – Can be supplied on request for wider beam widths.
- End stoppers – To prevent damage.
- Anti tilt – To prevent damage or loss of load.
- Wheels – Universal wheels to suit tapered or flat flange.
- Complies with – The requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC.
Specifications
| WLL t | Min. Radius of Curve m | A mm | B mm | C mm | E mm | I Beam Width Standard Range 1 D mm | I Beam With Extended Range 2 D mm | Standard Range 1 F mm | Extended Range 2 F mm | Standard Range 1 Mass kg | Extended Range 2 Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.50 | 0.8 | 199 | 159 | 22 | 28 | 50 - 203 | - | 294 | - | 6.9 | - |
| 1.00 | 0.9 | 221 | 185 | 30 | 29.5 | 64 - 203 | 64 - 305 | 309 | 412 | 9.0 | 10.5 |
| 2.00 | 1.0 | 288 | 226 | 36 | 36 | 88 - 203 | 88 - 305 | 327 | 431 | 14.6 | 16.5 |
| 3.20 | 1.20 | 334 | 279 | 45 | 45.5 | 100 - 203 | 100 - 305 | 351 | 457 | 25.2 | 27.7 |
| 5.00 | 1.30 | 407 | 311 | 55 | 50 | 114 - 203 | 114 - 305 | 366 | 470 | 38.3 | 42.0 |
