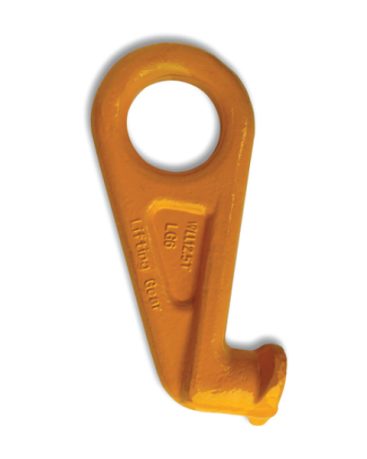

CONTAINER HOOK
Container Hooks are designed for lifting shipping containers via connection to the twist lock pocket. The large diameter eye accommodates a wide range of compatible hooks. Available in left-hand, right-hand, and straight configurations to suit various lifting setups.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Conforms to AS 3776, Test Certificates available upon request
Specifications

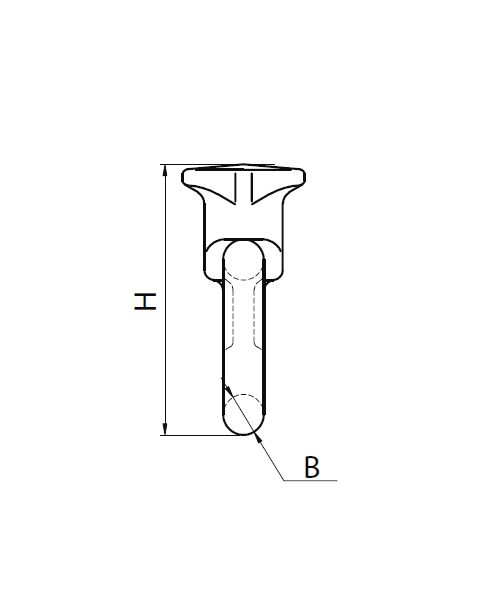

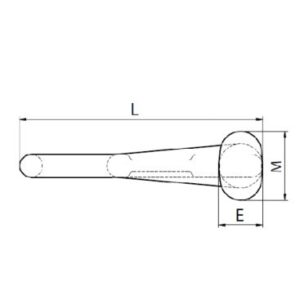

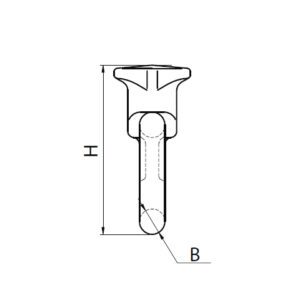

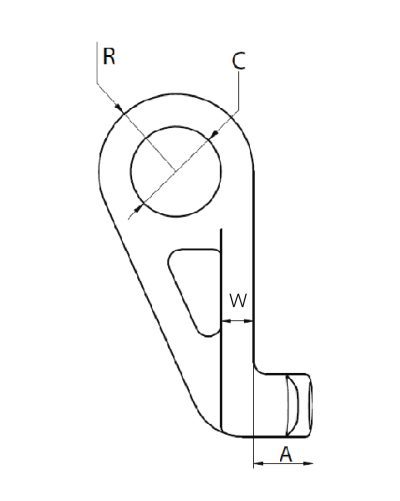

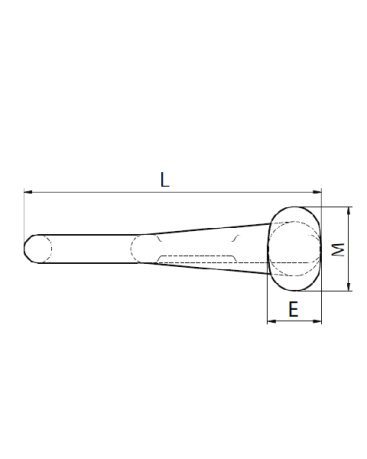

| TYPE | SIZE G80 (mm) | SIZE G100 (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | E (mm) | R (mm) | M (mm) | L (mm) | H (mm) | h (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Straight | 20 | 19 | 12.5 | 4 | 46 | 25 | 70 | 48 | 60 | 75 | 265 | 166 | 25 |
| LH45 | 20 | 19 | 12.5 | 4 | 46 | 25 | 70 | 48 | 60 | 75 | 265 | 166 | 25 |
| RH45 | 20 | 19 | 12.5 | 4 | 46 | 25 | 70 | 48 | 60 | 75 | 265 | 166 | 25 |
Subject to change without notice
