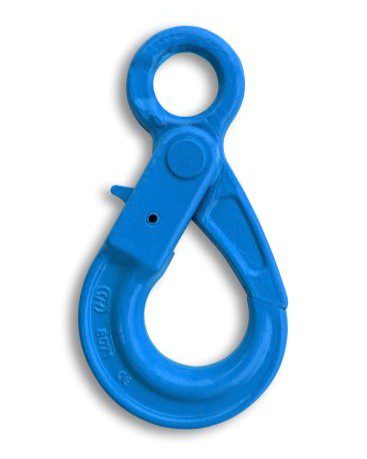

SELF-LOCKING HOOK – EYE
Grade 100 Eye Self-Locking Hooks are designed for one-handed use and automatically close when the load is engaged. The hook remains locked until the rear trigger is pressed, enhancing lifting safety. The eye design allows easy connection to chain connectors, shackles, and wire rope slings.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacture quality mark
- Manufactured from G100 alloy steel with a safety factor of 4 to 1
- Manufactured and tested in accordance to AS 3776
- Test Certificates available upon request
Specifications

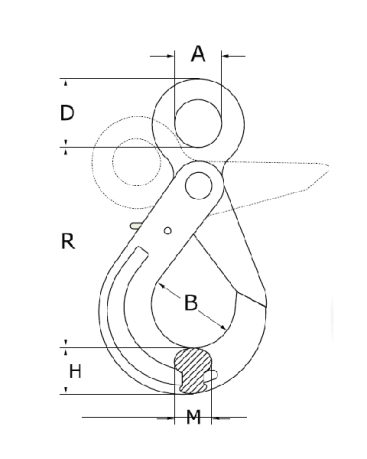

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | D (mm) | E (mm) | R (mm) | L (mm) | M (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.5 | 21 | 28 | 110 | 141 | 70 |
| 8 | 2.5 | 0.9 | 27 | 35 | 137 | 175 | 90 |
| 10 | 4 | 1.5 | 34.5 | 45 | 169 | 212 | 108 |
| 13 | 6.7 | 2.7 | 40 | 53 | 209 | 270 | 138 |
| 16 | 10 | 5.7 | 50 | 62 | 254 | 331 | 170 |
| 20 | 16 | 7.9 | 60 | 76 | 277 | 369 | 192 |
| 22 | 19 | 11.2 | 70 | 80 | 319 | 417 | 205 |
| 26 | 26.5 | 20.5 | 80 | 100 | 370 | 435 | 251 |
| 32 | 40 | 40.35 | 95 | 135 | 469 | 620 | 329 |
Subject to change without notice
