MASTER LINK – MULTI

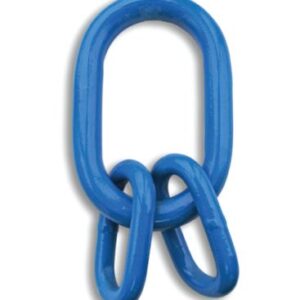

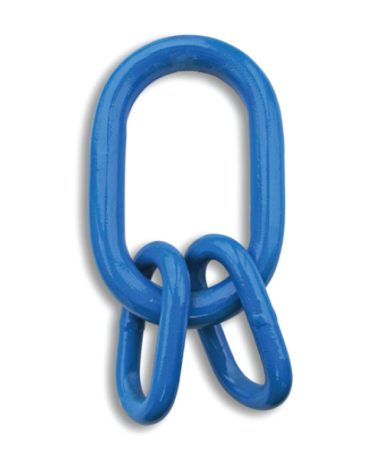

Grade 100 Multi Head Rings are designed with a large master ring and two intermediate links to accommodate two, three, or four leg chain or wire rope slings. Ideal for multi-leg lifting applications, they offer strength, stability, and ease of assembly.
- Description
Description
Features
- Marked with chain size, designation, grade with manufacturer quality mark
- Made from G100 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request
- Manufactured and tested in accordance to AS 3776
Specifications

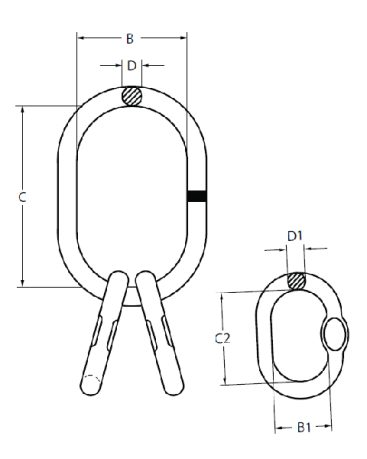

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | B (mm) | B1 (mm) | C (mm) | C2 (mm) | D (mm) | D1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 6 | 3.5 | 1.8 | 75 | 25 | 135 | 84 | 19 | 13 |
| 8 | 5 | 3.0 | 90 | 35 | 160 | 70 | 23 | 16.5 |
| 10 | 8 | 6.5 | 100 | 40 | 180 | 85 | 27 | 19 |
| 13 | 14 | 15 | 110 | 50 | 200 | 115 | 33 | 23 |
| 16 | 21 | 23 | 140 | 65 | 260 | 140 | 36 | 27 |
| 20 | 33.6 | 22.8 | 190 | 70 | 350 | 150 | 50 | 33 |
| 22 | 39.9 | 26 | 190 | 100 | 350 | 180 | 50 | 36 |
| 26 | 56 | 42.6 | 200 | 100 | 400 | 180 | 60 | 45 |
| 32 | 85 | 66.7 | 250 | 110 | 460 | 200 | 72 | 50 |
Subject to change without notice
