SKIP BIN TRUCK HOOK – IMEG ICE

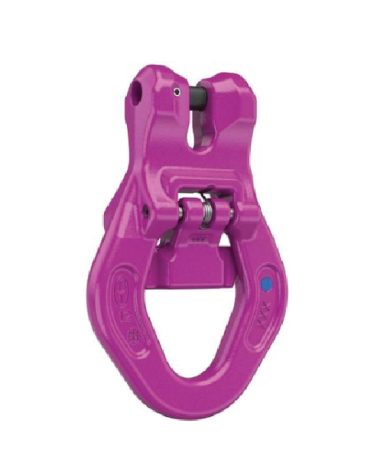

The Grade 120 IMEG ICE Skip Bin Truck Hook is a robust, user-friendly solution designed for quick and secure attachment. Commonly used in waste management and recycling applications, it’s ideal for lifting and transporting rubbish skips and recycling bins.
- Description
Description
Features
- Quick, robust and user friendly
- Quick attachment, without separate unlatching
- Simplified hinge and unhinge of the suspension ring by ergonomic designed locking latch
- Locking latch with slide resistant shape
- Protection ribs to prevent the locking latch from damage and impact shocks
- Suitable for standardised dump truck studs acc. to DIN/EN 30720
Specifications

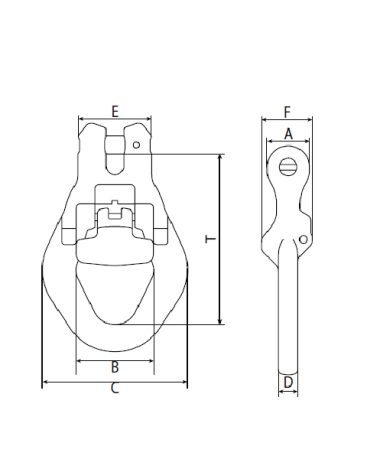

| CHAIN SIZE (mm) | WLL (tonnes) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Fmax (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 5.0 | 2.2 | 37 | 66 | 128 | 20 | 64 | 46 | - | 153 |
| 10 | 5.0 | 3.0 | 61 | 37 | 36 | 40 | 137 | 50 | 81 | 171 |
