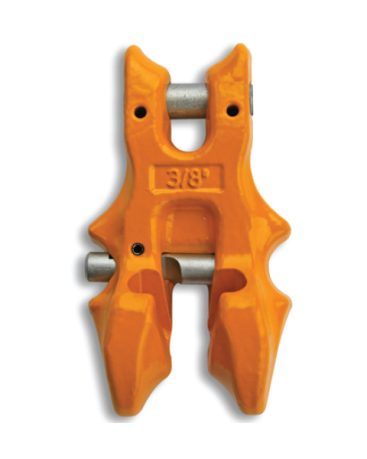

SHORTENING CLUTCH – LOCKING
Locking Shortening Clutches allow safe chain sling adjustment without compromising the Working Load Limit. The clevis design enables easy chain connection, while the integrated locking device secures the chain in place during use.
- Description
Description
Features
- Marked with Chain size, product ID, grade with manufacturer quality mark
- Manufactured from G80 alloy steel with a safety factor of 4 to 1
- Conforms to AS 3776, Test Certificates available upon request
- Used in-line set-up
Specifications
| SIZE (mm) | WLL (tonne) | WEIGHT (kg) |
|---|---|---|
| 7 - 8 | 2 | 0.5 |
| 10 | 3.2 | 0.9 |
| 13 | 5.3 | 2.1 |
| 16 | 8 | 3.7 |
| 20 | 12.5 | 5.7 |
Specifications are subject to change without notice
