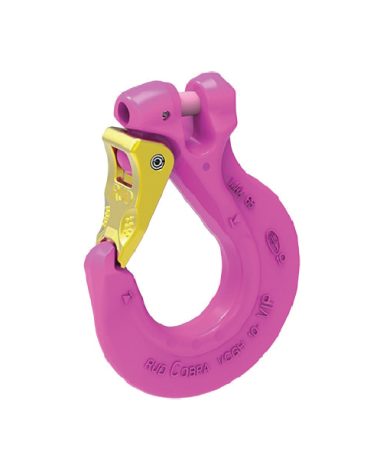

CLEVIS SLING HOOK (WITH LATCH)
The Grade 120 Clevis Sling Hook with Latch is up to 25% lighter than equivalent Grade 80 hooks with the same Working Load Limit. It features a wide throat opening for easier load engagement and maintains the proven dimensional design of widely used, high-performance lifting hooks.
- Description
Description
Features
- Due to its innovative construction, the skeletal design Star Hook is up to 25 % lighter than Grade 80
hooks of the same WLL, i.e. the next larger size - Marker points to check the width of the hook on inspection
- Wear ribs – which protect the first chain link into the clevis
Specifications

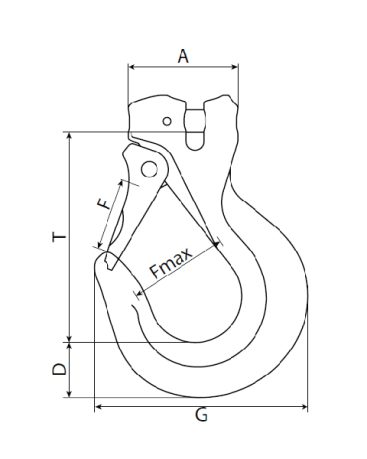

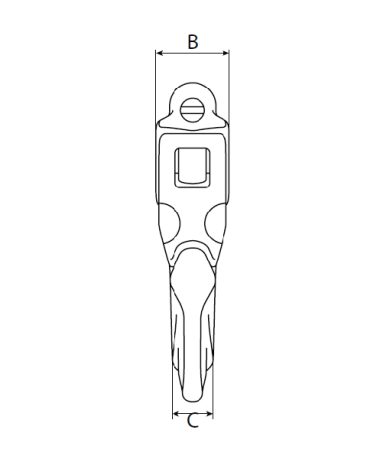

| CHAIN SIZE (mm) | WLL (tonnes) | A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | Fmax (mm) | G (mm) | T (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.8 | 22 | 15 | 13 | 14.5 | 20 | - | 53 | 55 | 0.16 |
| 6 | 1.8 | 48 | 28 | 18 | 26 | 30 | 51 | 97 | 97 | 0.69 |
| 8 | 3.0 | 45 | 36 | 20 | 29 | 36 | 58 | 110 | 110 | 1.1 |
| 10 | 5.0 | 56 | 43 | 25 | 37 | 41 | 66 | 127 | 127 | 1.9 |
| 13 | 8.0 | 85 | 52 | 31 | 48 | 50 | 80 | 153 | 153 | 3.5 |
| 16 | 12.5 | 94 | 58 | 38 | 56 | 58 | 96 | 184 | 184 | 5.5 |
