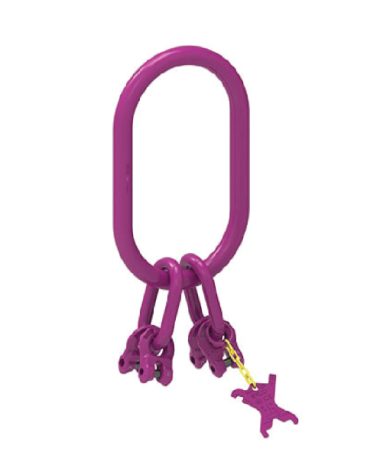

MULTI HEAD RING – IAK-3 OR 4
Multi Head Rings are designed to accommodate three or four leg chain slings or wire rope sling assemblies. They provide a strong and stable connection point for multi-leg lifting configurations.
- Description
Description
Features
- Marked with single & double chain sizes, batch number & grade
- Safety factor 4 to 1 for chain slings & 5 to 1 for wire rope slings
- Batch tested
Specifications

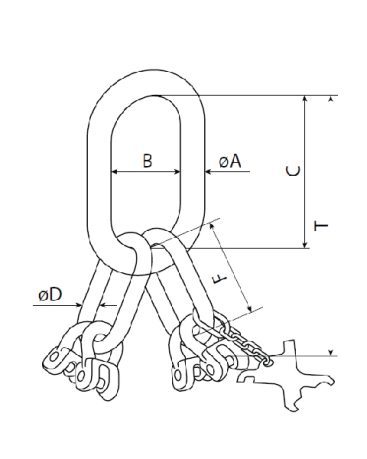

| CHAIN SIZE (mm) | WLL (tonnes) | WLL (tonnes) | Ø A (mm) | B (mm) | C (mm) | Ø D (mm) | E (mm) | F (mm) | T (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 3.75/2.7 | 3.1(2.9) | 18 | 90 | 160 | 13 | 40 | 85 | 280 |
| 8 | 6.3/4.5 | 5.4 (5.0) | 26 | 100 | 180 | 18 | 60 | 110 | 334 |
| 10 | 10.6/7.5 | 9.7 (9.0) | 32 | 110 | 200 | 22 | 65 | 140 | 394 |
| 13 | 17.0/11.8 | 16.6 (15.1) | 36 | 140 | 260 | 26 | 75 | 135 | 467 |
| 16 | 26.5/19.0 | 31.3 (28.7) | 42 | 190 | 350 | 32 | 90 | 160 | 598 |
