MASTER GRAB – DUO MGD
The Master Grab Duo (MGD) is an all-in-one compact top link that allows each chain leg to be quickly adjusted from a straight lift to a looped sling. This versatile design offers maximum flexibility and efficiency in lifting applications.
- Description
Description
Features
- The innovative design with few components and built in shortening function, makes the MGD the perfect foundation for a cost efficient and safe chain sling solution.
- This is a GUNNEBO product designed for wire rope or chain sling assemblies.
Specifications

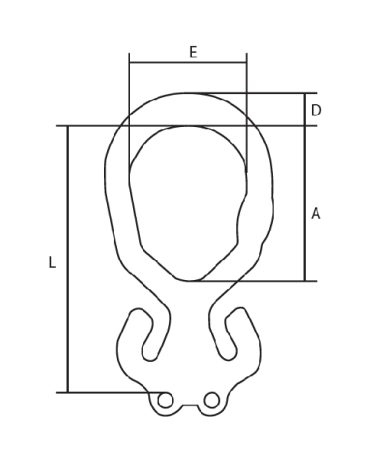

| CHAIN SIZE (mm) | WLL (tonne) | WEIGHT (kg per m) | L (mm) | A (mm) | E (mm) | D (mm) |
|---|---|---|---|---|---|---|
| 6 | 2.1 | 0.7 | 144 | 90 | 60 | 17 |
| 8 | 3.5 | 1.3 | 171 | 100 | 75 | 21 |
| 10 | 5.6 | 2.3 | 211 | 124 | 90 | 24 |
| 13 | 9.5 | 5.2 | 262 | 149 | 105 | 31 |
| 16 | 14 | 7.9 | 310 | 175 | 120 | 35 |
Subject to change without notice
