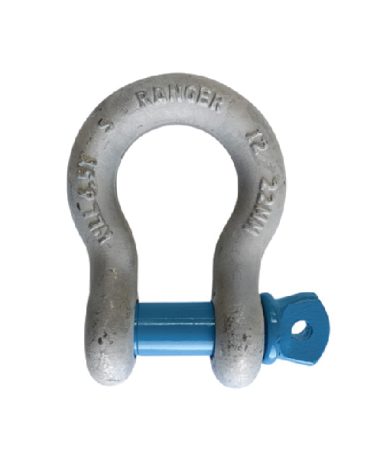

BOW SHACKLE SCREW PIN
Bow Shackles with Screw Pins are used in a wide range of lifting and rigging applications, providing a secure connection point for chain, wire rope and other rated fittings. Their wide bow design supports multi-directional loading, while the screw pin allows for fast and simple installation and removal across marine, agricultural, mining and industrial environments.
- Description
Description
Features:
- Conforms to AS2741 manufactured from Grade “S” material in bow configuration with Screw Pin hot dipped galvanised
- Marked with work load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification
- Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit
- Test Certificates are available upon request
- Suitable for lifting applications
- Larger capacities on request
Specifications
| SIZE (mm) | WLL (tonnes) | WEIGHT (kg) | B | D | d | E | L | W |
|---|---|---|---|---|---|---|---|---|
| 5 | 0.33 | 0.02 | 15 | 6 | 5 | 14 | 22 | 10 |
| 6 | 0.5 | 0.05 | 20 | 8 | 6 | 17 | 29 | 12 |
| 8 | 0.75 | 0.09 | 21 | 10 | 8 | 21 | 31 | 13 |
| 10 | 1 | 0.14 | 26 | 11 | 10 | 25 | 37 | 17 |
| 11 | 1.5 | 0.17 | 29 | 13 | 11 | 27 | 43 | 18 |
| 13 | 2 | 0.29 | 33 | 16 | 13 | 33 | 48 | 21 |
| 16 | 3.2 | 0.63 | 43 | 19 | 16 | 40 | 61 | 27 |
| 19 | 4.7 | 1.02 | 51 | 22 | 19 | 48 | 72 | 32 |
| 22 | 6.5 | 1.53 | 58 | 25 | 22 | 54 | 84 | 37 |
| 25 | 8.5 | 2.41 | 68 | 29 | 25 | 60 | 95 | 43 |
| 29 | 9.5 | 3.09 | 74 | 32 | 29 | 67 | 108 | 46 |
| 32 | 12 | 4.31 | 83 | 35 | 32 | 76 | 119 | 52 |
| 35 | 13.5 | 6.01 | 92 | 38 | 35 | 84 | 133 | 57 |
| 38 | 17 | 8.03 | 98 | 44 | 38 | 92 | 146 | 60 |
| 44 | 25 | 13.79 | 127 | 51 | 44 | 110 | 178 | 73 |
| 51 | 35 | 20.42 | 146 | 57 | 51 | 127 | 197 | 83 |
| 57 | 42.5 | 26.06 | 160 | 63 | 57 | 143 | 222 | 95 |
| 63 | 55 | 38.8 | 184 | 70 | 63 | 152 | 267 | 105 |
