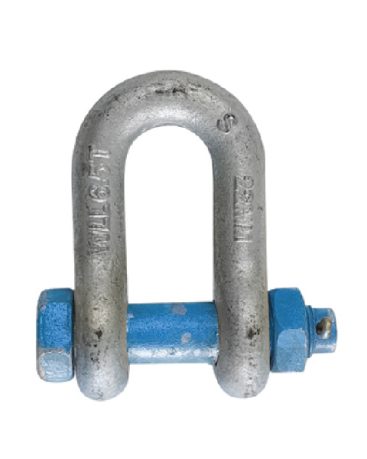

DEE SHACKLE SAFETY PIN
Dee Shackles with Safety Pins are designed for secure and long-term lifting use in applications subject to vibration or dynamic movement. The safety pin remains locked during operation and can rotate under load, delivering a dependable solution across sectors including marine, agricultural, mining and engineering.
- Description
Description
Features:
- Conforms to AS2741 manufactured from Grade “S” material in Dee configuration with Safety Pin hot dipped galvanized
- Marked with work load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification
- Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit
- Test Certificates are available upon request
- Suitable for lifting applications
- Larger capacities on request
Specifications

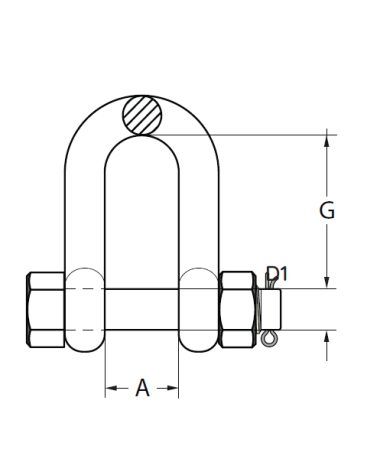

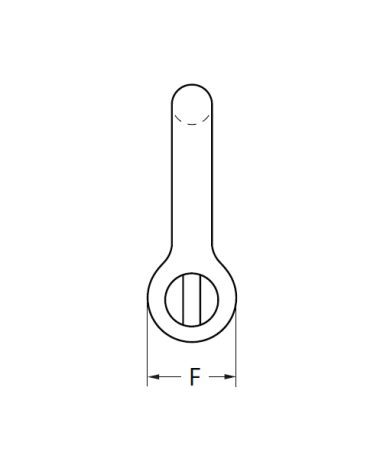

| SIZE (mm) | WLL (tonnes) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| 13 | 2 | 0.36 | 21 | 16 | 13 | 33 | 41 |
| 16 | 3.2 | 0.76 | 27 | 19 | 16 | 40 | 51 |
| 19 | 4.7 | 1.23 | 32 | 22 | 19 | 48 | 60 |
| 22 | 6.5 | 1.79 | 37 | 25 | 22 | 54 | 71 |
| 25 | 8.5 | 2.78 | 43 | 29 | 25 | 60 | 81 |
| 29 | 9.5 | 3.75 | 46 | 32 | 29 | 67 | 90 |
| 32 | 12 | 5.31 | 52 | 35 | 32 | 76 | 100 |
| 35 | 13.5 | 6.98 | 57 | 38 | 35 | 84 | 113 |
| 38 | 17 | 9.44 | 60 | 44 | 38 | 92 | 124 |
| 44 | 25 | 15.39 | 73 | 51 | 44 | 110 | 146 |
| 51 | 35 | 23.71 | 83 | 57 | 51 | 127 | 171 |
| 57 | 42.5 | 29.01 | 95 | 63 | 57 | 143 | 181 |
| 63 | 55 | 44.58 | 105 | 70 | 63 | 152 | 203 |
