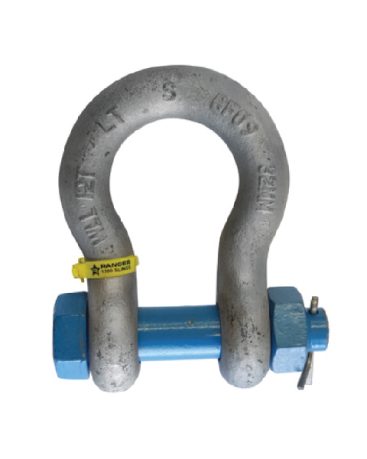

BOW SHACKLE SAFETY PIN
Bow Shackles with Safety Pins provide a secure and more permanent connection for lifting setups where vibration or movement may occur. Commonly used in marine, mining, agricultural and engineering sectors, the safety pin prevents unintentional loosening and allows rotation under load, maintaining secure performance in demanding conditions.
- Description
Description
Features:
- Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Safety Pin hot dipped galvanized
- Marked with work load limit in tonnes, quality grade, batch numbered, nominal size in millimetre and supplier identification
- Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit
- Test Certificates are available upon request
- Suitable for lifting applications
- Larger capacities on request
Specifications

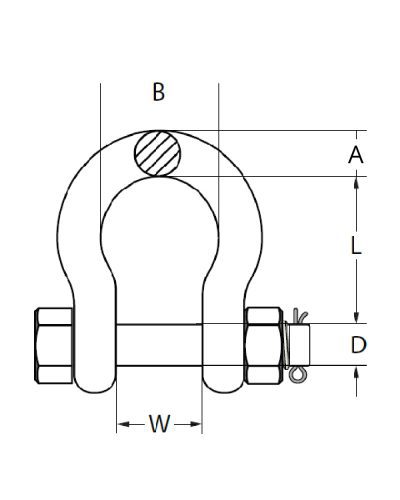

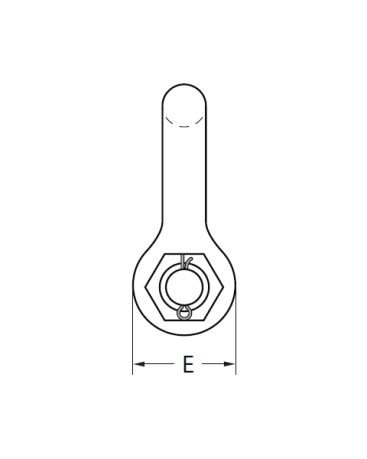

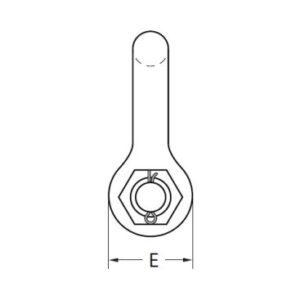

| SIZE (mm) | WLL (tonnes) | WEIGHT (kg) | B | D | d | e | L | W |
|---|---|---|---|---|---|---|---|---|
| 13 | 2 | 0.36 | 33 | 16 | 13 | 33 | 48 | 21 |
| 16 | 3.2 | 0.76 | 43 | 19 | 16 | 40 | 61 | 27 |
| 19 | 4.7 | 1.23 | 51 | 22 | 19 | 48 | 82 | 32 |
| 22 | 6.5 | 1.79 | 58 | 25 | 22 | 54 | 84 | 37 |
| 25 | 8.5 | 2.78 | 68 | 29 | 25 | 60 | 95 | 43 |
| 29 | 9.5 | 3.75 | 74 | 32 | 29 | 67 | 108 | 46 |
| 32 | 12 | 5.31 | 83 | 35 | 32 | 76 | 119 | 52 |
| 35 | 13.5 | 6.98 | 92 | 38 | 35 | 84 | 133 | 57 |
| 38 | 17 | 9.44 | 98 | 44 | 38 | 92 | 146 | 60 |
| 44 | 25 | 15.39 | 127 | 51 | 44 | 110 | 178 | 73 |
| 51 | 35 | 23.71 | 146 | 57 | 51 | 127 | 197 | 83 |
| 57 | 42.5 | 29.01 | 160 | 63 | 57 | 143 | 222 | 95 |
| 63 | 55 | 44.58 | 184 | 70 | 63 | 152 | 267 | 105 |
| 76 | 85 | 69.87 | 200 | 83 | 76 | 165 | 330 | 127 |
| 89 | 120 | 129.31 | 241 | 95 | 89 | 203 | 381 | 153 |
| 102 | 150 | 153.36 | 279 | 108 | 102 | 229 | 432 | 165 |
