Eye/Eye Turnbuckles (Grade P) are galvanised, tested and certified to AS2319–2001. Designed for inline tensioning applications with chain or wire rope in rated rigging systems.
EYE & EYE TURNBUCKLES – GRADE P
- Description
Description
Specifications

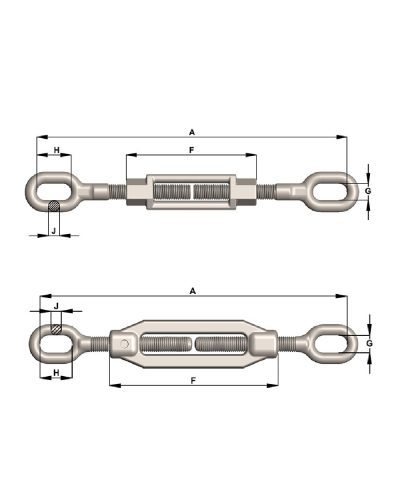

| NOMINAL SIZE | WLL (tonnes) | WEIGHT (kg/pc) | A Closed (mm) | A open (mm) | F (mm) | G (mm) | H (mm) | J (mm) |
|---|---|---|---|---|---|---|---|---|
| M10 | 0.60 | 0.35 | 230 | 335 | 150 | 11 | 21 | 7 |
| M12 | 1.00 | 0.67 | 330 | 470 | 190.5 | 15 | 30 | 9 |
| M16 | 1.60 | 1.5 | 350 | 485 | 204 | 17 | 36 | 12 |
| M20 | 2.50 | 2.16 | 385 | 515 | 216.5 | 21 | 42 | 14 |
| M24 | 4.00 | 3.5 | 440 | 570 | 232 | 25 | 51 | 17 |
| M33 | 8.00 | 6.5 | 656 | 806 | 252 | 33 | 70 | 24 |
