WIDE BODY SLING SAVER
Green Pin Wide Body Sling Shackles are designed to provide an increased load bearing surface for slings, reducing friction and heat build-up during lifting. This design minimises wear on the sling, especially under heavier loads, offering a safer and more durable connection for demanding lifting operations.
- Description
Description
Specifications

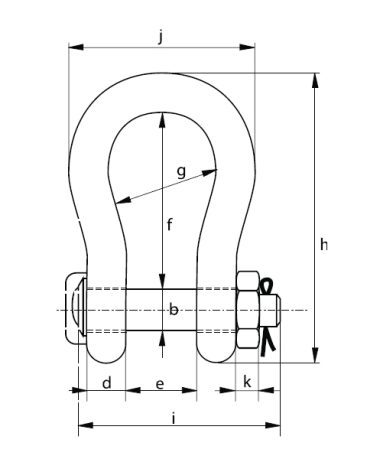

| WLL (tonnes) | A: DIA BODY | B: DIA PIN | C: DIA EYE | D: WIDTH EYE | E: WIDTH INSIDE | F: LENGTH INSIDE | G: WIDTH BOW | H: LENGTH | I: LENGTH BOLT | J: WIDTH | K: THICKNESS NUT | L: BEARING SURFACE | WEIGHT EACH (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 35 | 35 | 69 | 30 | 54 | 148 | 102 | 239 | 171 | 180 | 29 | 64 | 7 |
| 30 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 207 | 200 | 34 | 79 | 13 |
| 40 | 55 | 51 | 109 | 45 | 84 | 199 | 140 | 331 | 252 | 235 | 38 | 97 | 21 |
| 55 | 60 | 57 | 115 | 55 | 90 | 240 | 160 | 389 | 294 | 270 | 45 | 100 | 30 |
| 75 | 68 | 70 | 125 | 54 | 110 | 290 | 185 | 473 | 327 | 317 | 54 | 120 | 48 |
| 125 | 85 | 80 | 154 | 85 | 137 | 366 | 220 | 583 | 426 | 390 | 64 | 150 | 92 |
| 150 | 94 | 95 | 179 | 89 | 147 | 391 | 253 | 645 | 435 | 434 | 50 | 170 | 140 |
| 200 | 110 | 105 | 199 | 100 | 158 | 481 | 280 | 759 | 470 | 482 | 50 | 205 | 205 |
| 250 | 126 | 120 | 227 | 110 | 179 | 542 | 300 | 859 | 519 | 530 | 60 | 240 | 264 |
| 300 | 135 | 134 | 245 | 122 | 195 | 601 | 350 | 947 | 575 | 620 | 70 | 265 | 360 |
| 400 | 160 | 160 | 293 | 145 | 231 | 576 | 370 | 985 | 675 | 690 | 80 | 320 | 580 |
| 500 | 170 | 180 | 328 | 160 | 263 | 681 | 450 | 1131 | 748 | 790 | 90 | 339 | 780 |
| 600 | 190 | 200 | 348 | 170 | 289 | 741 | 490 | 1234 | 809 | 865 | 100 | 370 | 980 |
| 700 | 200 | 215 | 392 | 190 | 315 | 751 | 540 | 1284 | 879 | 901 | 100 | 400 | 1360 |
| 800 | 218 | 230 | 420 | 200 | 342 | 851 | 554 | 1426 | 942 | 947 | 110 | 420 | 1430 |
| 900 | 242 | 255 | 466 | 220 | 368 | 851 | 580 | 1488 | 1023 | 1023 | 120 | 440 | 1650 |
| 1000 | 260 | 270 | 490 | 240 | 399 | 851 | 614 | 1532 | 1103 | 1107 | 120 | 460 | 2970 |
| 1250 | 285 | 300 | 510 | 260 | 452 | 931 | 650 | 1666 | 1227 | 1182 | 150 | 530 | 3700 |
| 1550 | 285 | 320 | 550 | 280 | 483 | 950 | 680 | 1710 | 1300 | 1253 | 150 | 560 | 4000 |
