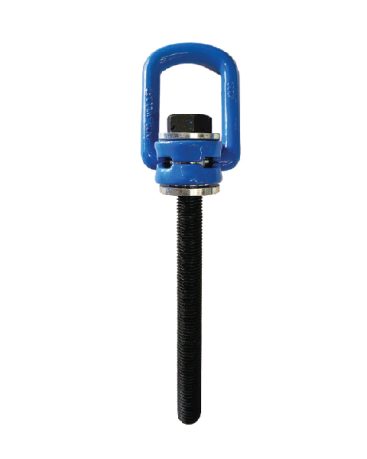

Description
Features
- 360° swivel with 180º pivot function
- Hoist ring and bail are manufactured from quenched and tempered, forged alloy steel
- Test certificates supplied
- Rated at 100% at 90º angle
- Bolts are metric thread grade 10.9
- Standard and long bolt type available
- 100% magnaflux crack detection, 20,000 cycle fatigue tested
Specifications
| SIZE (mm) | WLL (t) | EL (Bolt Effective Length) (mm) |
|---|---|---|
| M12 | 1.0t | 114 |
| M16 | 1.5t | 194 |
| M20 | 2.5t | 187 |
| M24 | 4.0t | 222 |
| M30 | 5.0t | 279 |
| M36 | 7.0t | 223 |
| M42 | 10.0t | 263 |
| M48 | 11.6t | 295 |
All other dimensions are the same as the standard Swivel Lifting Point.
