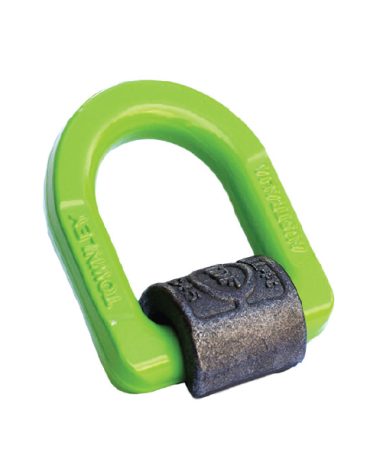

WELD ON LOAD RINGS – TWLP
Weld-on lift points and load rings allow for the addition of fixed lifting lugs to heavy equipment, spreader beams, and other large assemblies, providing a strong and permanent attachment for secure lifting operations.
- Description
Description
Features
- Forged from High Tensile Alloy Steel
- Hardened and Tempered
- Powder Coated Finish to AS4506
- Manufactured exclusively from Australian Made Steel
Welding Lug
- Forged from G300 Mild Steel – AS3679.1 Grade 300PLUS
- Readily weldable
- Weld procedure included
- Welding shall always be carried out by a qualified person to AS1554.1:2011
Specifications
| WLL (t) | A | B | C | D | E | F | G | H | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2.5 | 40 | 82 | 34 | 68 | 28 | 14 | 14 | 92 | 0.42 |
| 4 | 53 | 104 | 46 | 90 | 33 | 18 | 18 | 116 | 0.86 |
| 6.7 | 68 | 138 | 60 | 116 | 45 | 23 | 23 | 155 | 2 |
| 10 | 70 | 140 | 60 | 130 | 57 | 26 | 26 | 170 | 3.2 |
| 16 | 102 | 210 | 92 | 192 | 70 | 38 | 30 | 240 | 7 |
