LIFTING LOOP

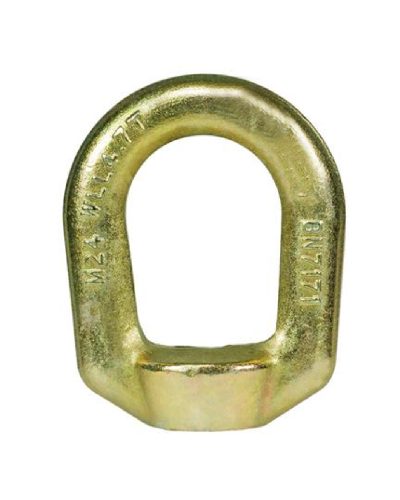

Lifting loops act as removable hanging eye nuts where a rated male thread or bolt can be used. Common in the mining industry, the Eyebow Nut M24 is made from G-400 forged steel, quenched and tempered, and zinc plated, with a bow shape manufactured to ANS/NZ requirements.
- Description
Description
Specifications

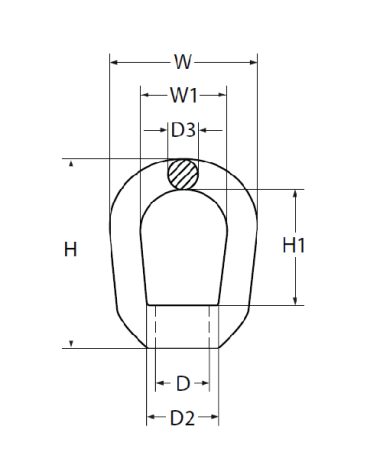

| SIZE (mm) | WLL (t) | WEIGHT (kg) | D (mm) | D2 (mm) | D3 (mm) | H (mm) | H1 (mm) | W (mm) | W1 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M24 | 4.7 | 1 | 24 | 46 | 21 | 125 | 75 | 98 | 53 |
