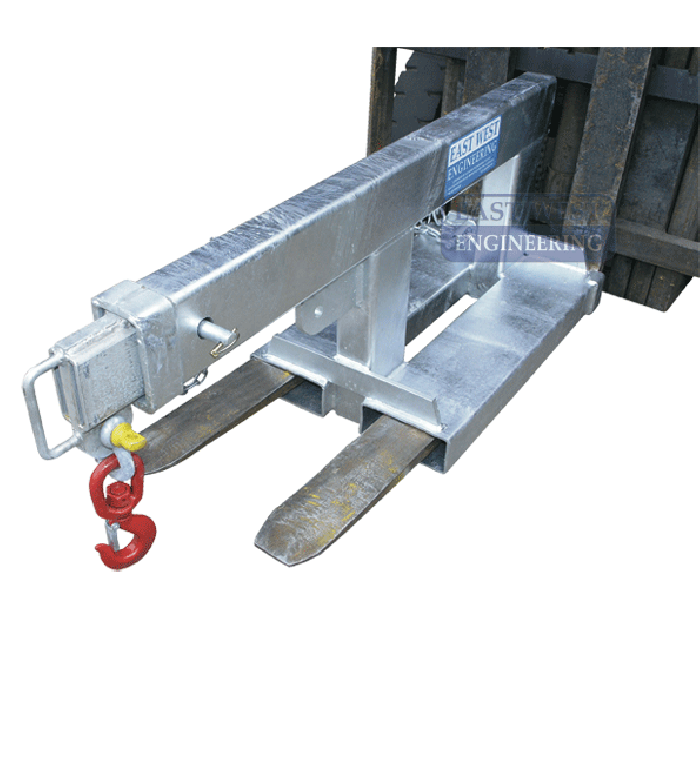

Telescopic Jib (Short) FJCS25
The FJCS25 Telescopic Jib is an affordable general purpose short reach forklift jib designed to suit lifting and maintenance requirements in confined spaces.
- Description
Description
Features
- 1.96m reach when fully extended
- 1.3m overall length when retracted allow use in confined spaces
- Supplied with safety swivel hook and shackle
- Slip-on attachment and safety chain allows quick connection to a forklift
- Zinc finish
Specifications
| Working Load Limit (WLL) | 2500kg |
| Load Centre | 790mm |
| Unit Weight | 100kg |
| Fork Pocket Size | 185 x 65mm |
| Fork Pocket Centres | 275mm |
Working Load Limit (WLL) Per Position
| Position | 1 | 2 | 3 | 4 |
| Extension | 790 | 1200 | 1580 | 1960 |
| WLL (kg) | 2500 | 1200 | 900 | 750 |
