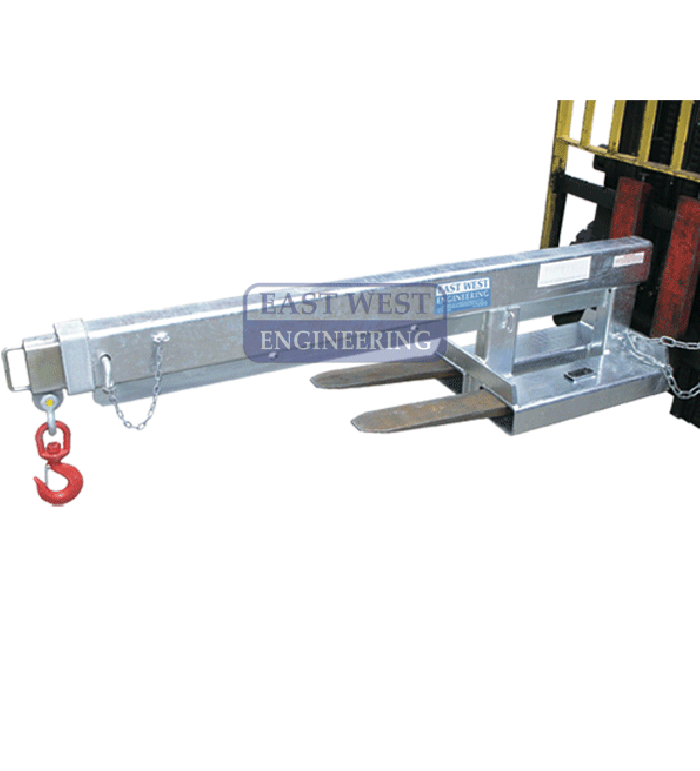

Telescopic Jib (Long) FJCL50
The FJCL50 Telescopic Jib is an affordable general purpose long reach forklift jib designed to suit most lifting and maintenance requirements.
- Description
Description
Features
- 3.5m reach when fully extended allowing for long reach lifts
- 2.1m overall length when retracted
- Supplied with safety swivel hook and shackle
- Slip-on attachment and safety chain allows quick connection to a forklift
- Zinc finish
Specifications
| Working Load Limit (WLL) | 4750kg |
| Load Centre | 935mm |
| Unit Weight | 170kg |
| Fork Pocket Size | 185 x 75mm |
| Fork Pocket Centres | 275mm |
Working Load Limit (WLL) Per Position
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Extension | 935 | 1395 | 1855 | 2000 | 2380 | 2760 | 3140 | 3520 |
| WLL (kg) | 4750 | 4275 | 3800 | 3300 | 2500 | 1300 | 760 | 480 |
