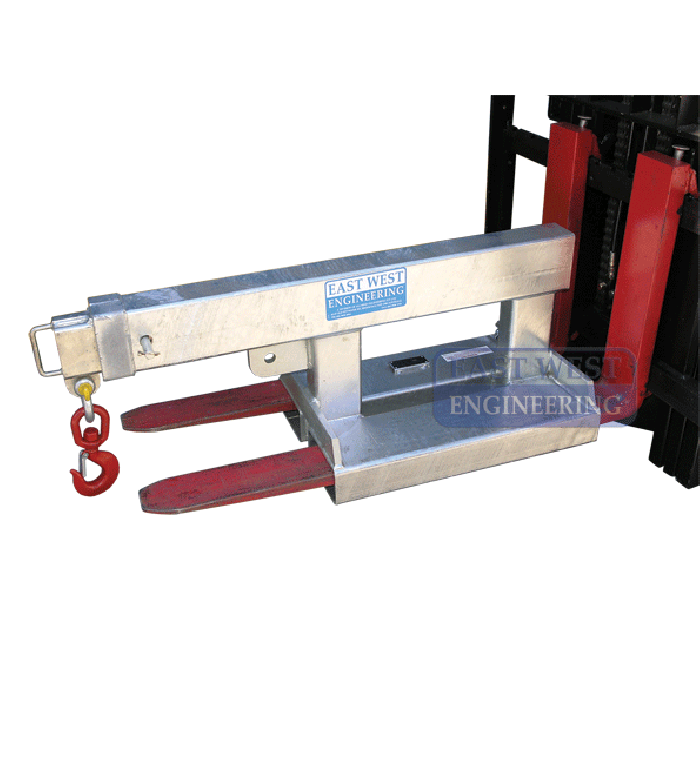

Telescopic Jib (Short) FJCS50
The FJCS50 Telescopic Jib is an affordable general purpose short reach forklift jib designed to suit most lifting and maintenance requirements.
- Description
Description
Features
- 1.96m reach when fully extended
- 1.3m overall length when retracted allows use in confined spaces
- Supplied with safety swivel hook and shackle
- Slip-on attachment and safety chain allows quick connection to a forklift
- Zinc finish
Specifications
| Working Load Limit (WLL) | 4750kg |
| Load Centre | 780mm |
| Unit Weight | 130kg |
| Fork Pocket Size | 185 x 75mm |
| Fork Pocket Centres | 275mm |
Working Load Limit (WLL) Per Position
| Position | 1 | 2 | 3 |
| Extension | 780 | 1200 | 1580 |
| WLL (kg) | 4750 | 2400 | 1800 |
