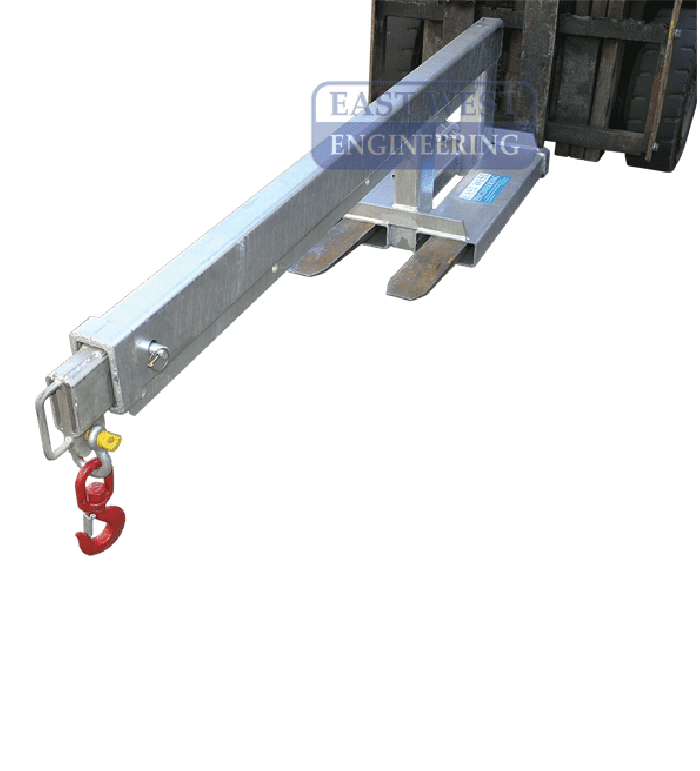

Telescopic Jib (Long) FJCL25
The FJCL25 Telescopic Jib is as an affordable general purpose long reach forklift jib designed to suit most lifting and maintenance requirements.
- Description
Description
Features
- 3.5m reach when fully extended allowing for long reach lifts
- 2.1m overall length when retracted
- Supplied with safety swivel hook and shackle
- Slip-on attachment and safety chain allows quick connection to a forklift
- Zinc finish
Specifications
| Working Load Limit (WLL) | 2500kg |
| Load Centre | 950mm |
| Unit Weight | 135kg |
| Fork Pocket Size | 185 x 65mm |
| Fork Pocket Centres | 275mm |
Working Load Limit (WLL) Per Position
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Extension | 950 | 1410 | 1870 | 2000 | 2380 | 2760 | 3140 | 3520 |
| WLL (kg) | 2500 | 2500 | 1900 | 1650 | 1250 | 650 | 380 | 240 |
