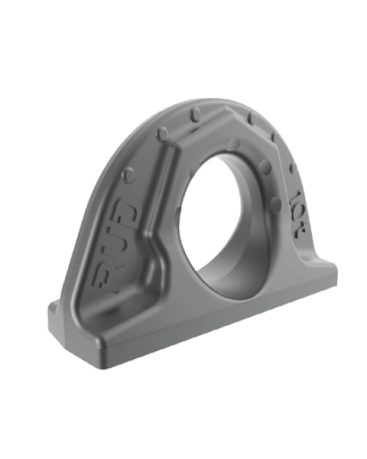

ABA LIFTING POINT FOR WELDING
ABA weld-on lifting points are designed for permanent attachment to loads or lifting equipment. They can be hinged into lifting means and also serve as secure lashing points. Engineered for versatility, they allow loading from any direction.
For full Technical Specifications
ABA Weld on lifting point- Description
Description
Features
- 4:1 safety against breaking
- Patented markings for easy determination of when to withdraw from service
- Tempered base body, therefore wear-resistant
- Weld On
Specifications

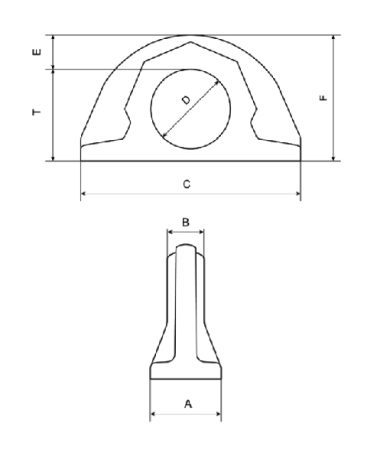

| WLL (t) | T | A | B | C | D | E | F | WEIGHT (kg) |
|---|---|---|---|---|---|---|---|---|
| 0.8 | 38 | 22 | 12 | 70 | 32 | 12 | 50 | 0.20 |
| 1.6 | 42 | 30 | 16 | 100 | 35 | 16 | 57 | 0.45 |
| 3.2 | 59 | 41 | 23 | 137 | 50 | 21 | 80 | 1.15 |
| 5 | 72 | 51 | 27 | 172 | 60 | 28 | 99 | 2.26 |
| 10 | 95 | 70 | 38 | 228 | 80 | 35 | 130 | 5.37 |
| 20 | 135 | 90 | 52 | 272 | 115 | 40 | 175 | 10.72 |
| 31.5 | 154 | 108 | 64 | 320 | 130 | 50 | 204 | 18.33 |
