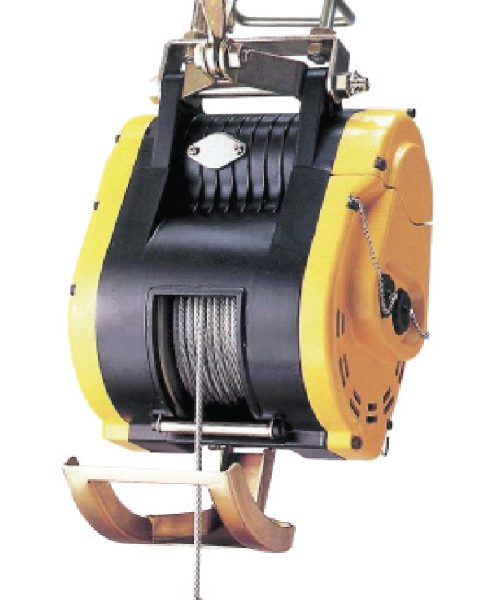

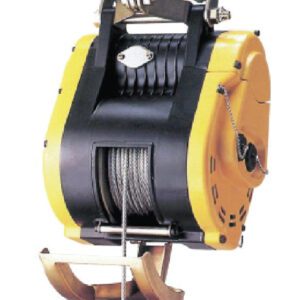

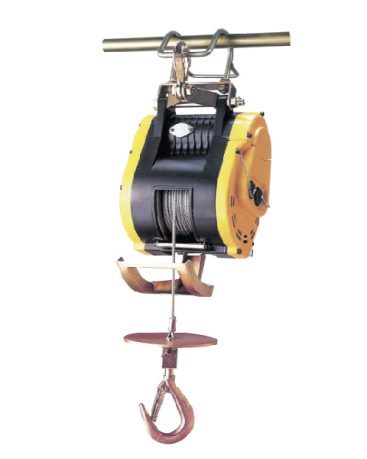

Pacific Electric Wire Rope Hoists are compact, lightweight and easy to install, making them ideal for use in warehouses, construction sites and manufacturing facilities. Built for efficiency and ease of use, they are suited to a wide variety of lifting tasks. Their durable construction and portable design make them perfect where quick setup and reliable lifting are essential for productivity.
- Description
- Additional information
Description
Features
- Automatic upper limit switch; when rope disc touches the limit arm, hoisting is automatically stopped
- Dynamic and mechanical brake providing instant and safe braking
- Convenient 240V / single phase power supply
- Sensor arm automatically activates lower limit switch to stop motor if rope is under wound
- Supplied with 3m power lead and industry plug & 10m heavy duty IP65 waterproof pendant control
- Wire rope with 360º weighted hook with safety latch
- Optional push trolley mount
- Optional mounting arm on some models
Specifications

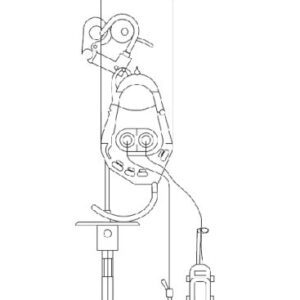

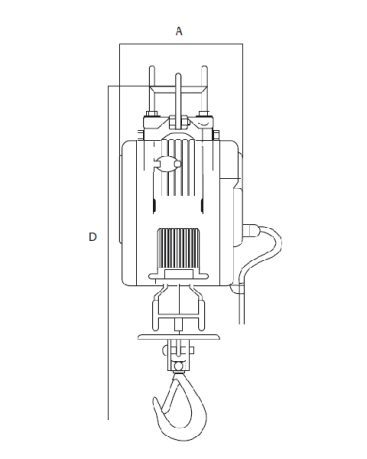

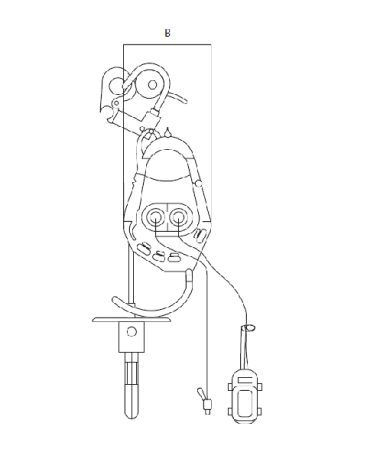

| RATED CAPACITY (kg) | SPEED (M/MIN/ 50HZ) | MOTOR OUTPUT (kw) | POWER SUPPLY (V) | MAX. HEIGHT OF LIFT (m) | WIRE ROPE DIMENSION (mm x m) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 30 | 0.8 | 240 | 35 | 3.3 x 36 | 18 | 200 | 168 | 65 | 605 | 879 |
| 160 | 22 | 1.2 | 240 | 40 | 4.0 x 41 | 25 | 244 | 182 | 60 | 640 | 879 |
| 230 | 14 | 1.3 | 240 | 24 | 5.0 x 25 | 26 | 244 | 182 | 60 | 640 | 879 |
| 300 | 13 | 1.5 | 240 | 24 | 4.8 x 25 | 28 | 244 | 182 | 60 | 640 | 879 |

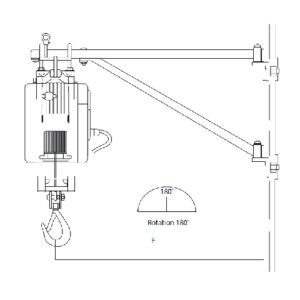

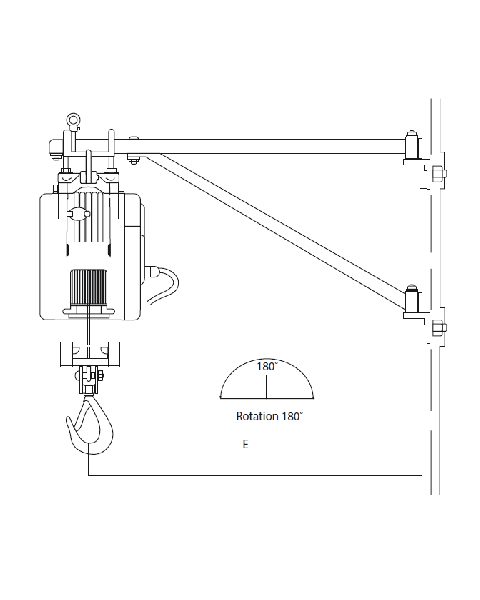

| Optional Swivel Arm | |||||||||||
Additional information
| Rated Capacity | 80kg, 160kg, 230kg, 300kg, Optional Swivel Arm |
|---|
