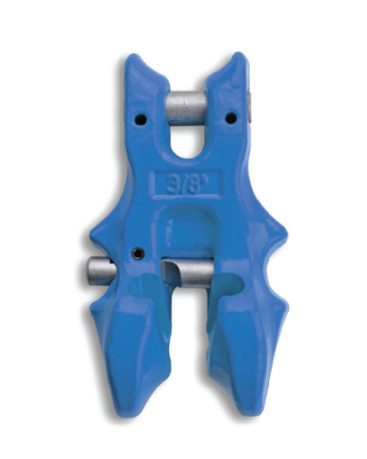

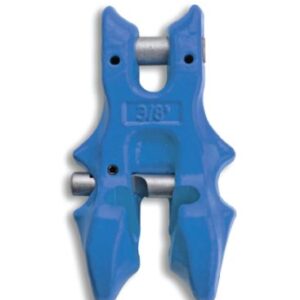

SHORTENING CLUTCH CLEVIS – LOCKING CLEVIS
Locking Clevis Shortening Clutches offer a safe and efficient way to adjust chain sling length without reducing the Working Load Limit. The clevis design allows easy chain connection, while the integrated locking device prevents the chain from dislodging during use, ensuring secure lifting operations.
- Description
Description
Features
- Marked with chain size, product ID, grade with manufacturer quality mark
- Manufactured from G100 alloy steel with a safety factor of 4 to 1
- Conforms to AS 3776, Test Certificates available upon request
- Used in in-line set-up
Specifications

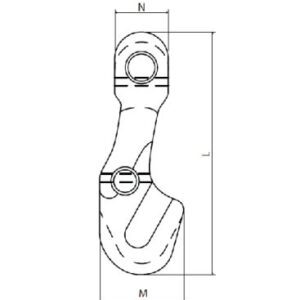

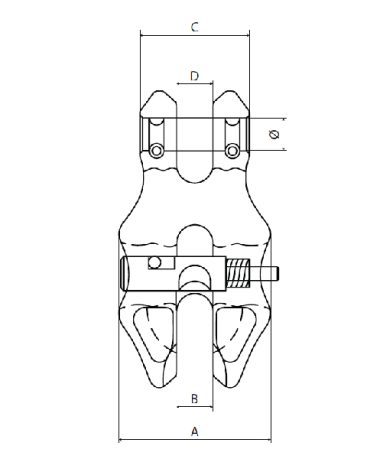

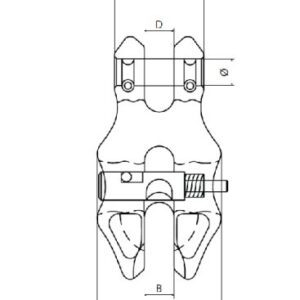

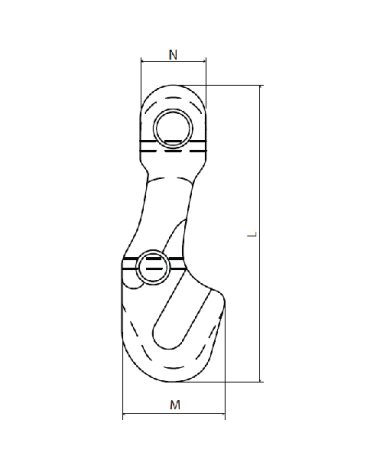

| SIZE (mm) | WLL (tonne) | WEIGHT (kg) | A (mm) | B (mm) | C (mm) | D (mm) | M (mm) | N (mm) | Ø (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 1.4 | 0.25 | 38 | 7.5 | 27 | 7.5 | 29 | 16 | 7.7 | 73 |
| 7 - 8 | 2.5 | 0.41 | 50 | 9.5 | 33 | 9.5 | 36 | 23 | 9.2 | 92 |
| 10 | 4 | 0.75 | 60 | 11.7 | 43.5 | 11.7 | 45.4 | 36 | 13.3 | 115 |
| 13 | 6.7 | 1.67 | 79 | 15 | 55 | 15 | 54 | 34 | 16.3 | 149 |
| 16 | 10 | 4.2 | 98 | 19 | 70 | 19 | 70 | 40 | 19.7 | 184 |
Subject to change without notice
