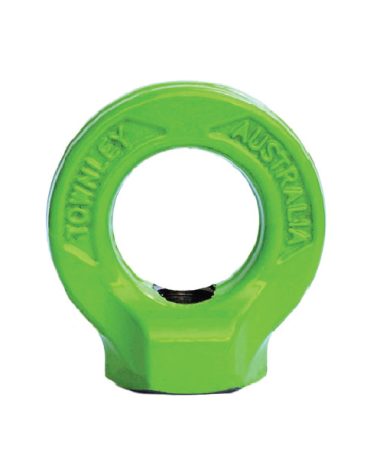

GRADE-8 LIFTING EYE NUTS
The new range of Grade-8 Eye Nuts delivers up to four times higher lifting capacity in certain applications. Geometry is based on DIN582, providing a larger internal eye diameter across the range.
- Description
Description
Features
- Forged From High Tensile Alloy Steel; Tempered
- Hi-Visibility Powder Coated Finish
- 100% electromagnetic crack testing to AS 1171
- Special thread forms made to order
Specifications

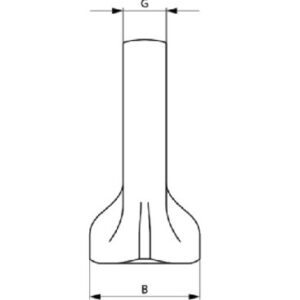

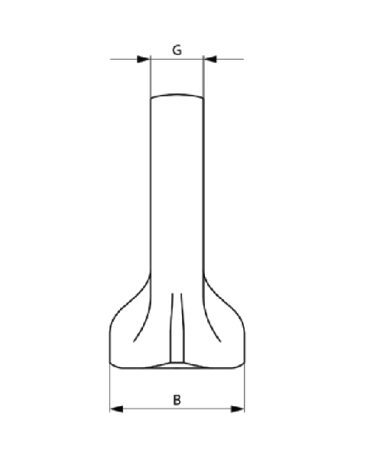

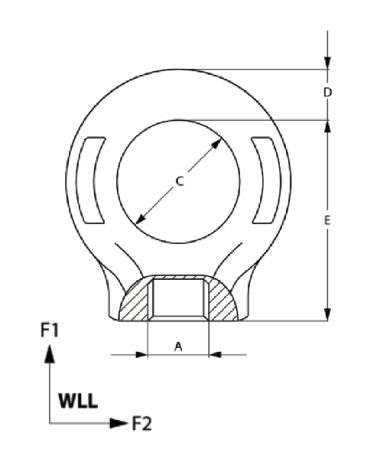

| WLL F1 (t) | WLL F2 (t) | SIZE A | WEIGHT (kg) | B | C | D | E | G |
|---|---|---|---|---|---|---|---|---|
| 0.8 | 0.2 | M08 | 0.17 | 27 | 30 | 12 | 48 | 10 |
| 1 | 0.25 | M10 | 0.17 | 27 | 30 | 12 | 48 | 10 |
| 1.6 | 0.4 | M12 | 0.17 | 27 | 30 | 12 | 48 | 10 |
| 4 | 1 | M16 | 0.37 | 34 | 34 | 15 | 56 | 14 |
| 6 | 1.6 | M20 | 0.6 | 41 | 40 | 17 | 70 | 16 |
| 8 | 2.5 | M22 | 1.1 | 50 | 50 | 20 | 85 | 18 |
| 8 | 2.5 | M24 | 1.1 | 50 | 50 | 20 | 85 | 18 |
| 8 | 2.5 | M27 | 1.1 | 50 | 50 | 20 | 85 | 18 |
| 12 | 3 | M30 | 2.6 | 60 | 60 | 26 | 105 | 26 |
| 12 | 3 | M33 | 3.7 | 72 | 72 | 34 | 120 | 32 |
| 16 | 4 | M36 | 3.7 | 72 | 72 | 34 | 120 | 32 |
