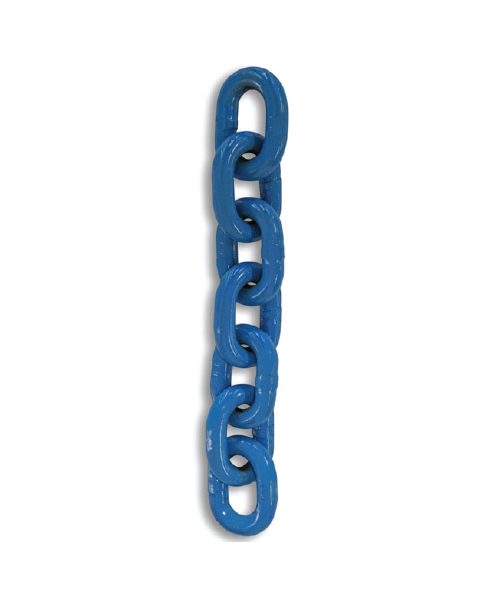

G100 – ALLOY CHAIN
LiftQuip G100 Chain is European manufactured, generally used for Chain Slings with 25% higher lifting capacity than G80. Manufactured from hardened and tempered alloy steels and has a high resistance to impact and wear to meet
critical requirements of AS 2321 “Short Link Chain for Lifting Purposes”. Chains are manufactured in Europe on German Wafios machines to ensure high quality.
- Description
Description
Features
- Sizes available from 6mm to 32mm
- Marked with chain grade and traceability mark
- Made from G100 alloy steel with safety factor of 4 to 1
- Conforms to AS 2321
- Batch tested, Test Certificates available upon request
Specifications

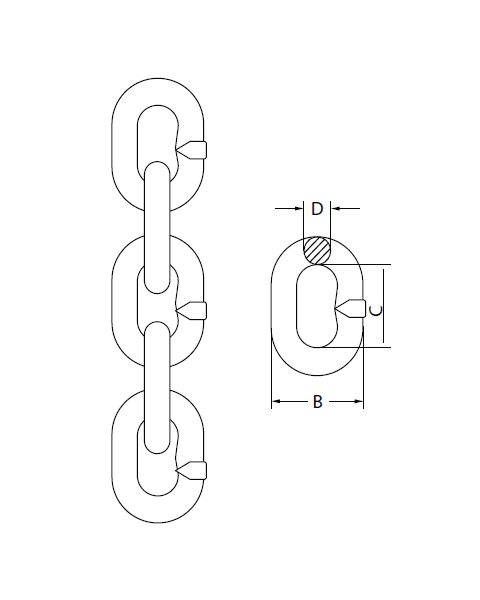

| SIZE (mm) | WLL (tonne) | B (mm) | C (mm) | D (mm) | WEIGHT (kg per m) |
|---|---|---|---|---|---|
| 6 | 1.1 | 21 | 18 | 6 | 0.84 |
| 7 | 1.5 | 24 | 21 | 7 | 1.14 |
| 8 | 2 | 28 | 24 | 8 | 1.41 |
| 10 | 3.2 | 35 | 30 | 10 | 2.21 |
| 13 | 5.3 | 46 | 39 | 13 | 3.76 |
| 16 | 8 | 57 | 48 | 16 | 5.64 |
| 20 | 12.5 | 70 | 60 | 20 | 7.78 |
| 22 | 15 | 78 | 66 | 22 | 10.64 |
| 26 | 21.2 | 91 | 78 | 26 | 14.8 |
| 32 | 31.5 | 115 | 96 | 32 | 21.6 |
Subject to change without notice
