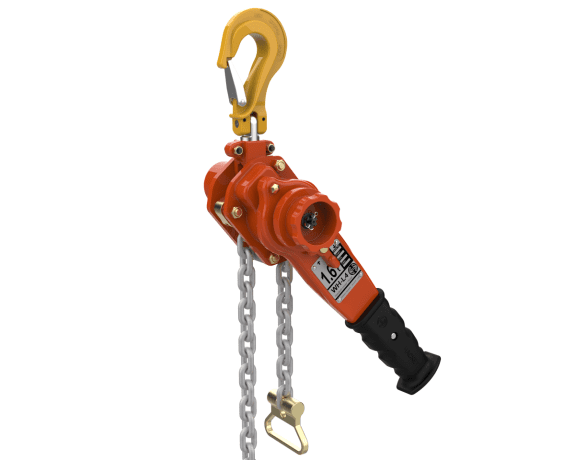

WH L4 Adaptable Lever Hoist
The William Hackett Adaptable Lever Hoist is designed, manufactured and proof load tested in the UK.

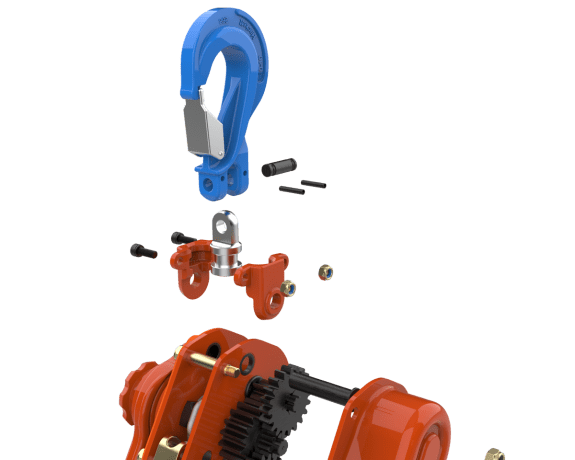

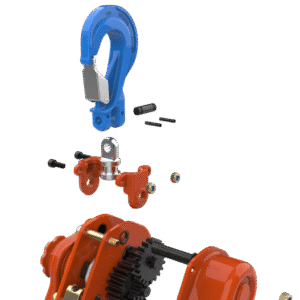

Whilst the same base model as our L4, this Lever Hoist has adaptors fitted into the top and bottom hook housings.
The clevis adaptor allows for 360 degree rotation and lateral pivot enabling greater flexibility. Hooks such as clevis self locking hook or clevis shackle can be fitted onto the adaptor which can provide a more secure fixing than the standard hook with latch.
We provide a full range of spare parts and can offer training on safe use and inspection.
- Description
Description
Features
- CLEVIS TOP AND BOTTOM HOOKS: Adaptors fitted into hook housings allow clevis style end fittings such as Hack8 Self locking hook or Clevis shackle.
- BESPOKE ADAPTORS: Allow 360 degree rotation and 180 degree pivot. This improved functionality helps hook engagement.
- LIGHT LOAD CAPABILITY: the WH L4 is tested and certified at 2% of the lever hoist rated capacity.
- TWIN PAWL: double safety; fitted as standard.
- HOOK HOUSING: secured with socket head cap screws/hex head bolts and nyloc locking nuts to allow full inspection.
- FLEETING/CROSS HAULING: the WH L4 lever hoists are tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration.
- LOAD CHAIN: the WH L4 lever hoists are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8).
- OVERLOAD LIMITER: available as an option upon request.
- TOP AND BOTTOM HOOK ADAPTORS: available as an option upon request.
- TRAVELLING END STOP: available as an option upon request.
- MANUFACTURED AND PROOF TESTED in the U.K.
Specifications

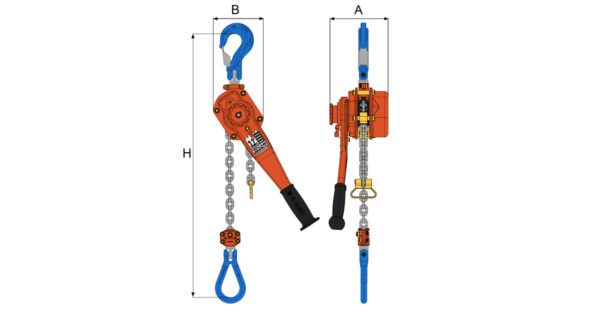

| WLL tonnes | No. of Falls | Load Chain (mm) | Standard Lift M | A mm | B mm | H mm | Mass Kg |
|---|---|---|---|---|---|---|---|
| 0.25 | 1 | 3.2 x 9 | 1.5 | 90 | 150 | 200 | 1.6 |
| 0.50 | 1 | 4.3 x 12 | 1.5 | 98 | 172 | 250 | 2.6 |
| 0.80 | 1 | 5.6 x 17 | 1.5 | 148 | 121 | 280 | 6.2 |
| 1.6 | 1 | 7.1 x 21 | 1.5 | 165.5 | 141 | 350 | 9.6 |
| 3.2 | 1 | 10 x 30 | 1.5 | 194.5 | 178 | 420 | 15.5 |
| 6.3 | 2 | 10 x 30 | 1.5 | 194.5 | 228 | 570 | 27 |
| 10.0 | 3 | 10 x 30 | 1.5 | 194.5 | 310 | 680 | 38.30 |
