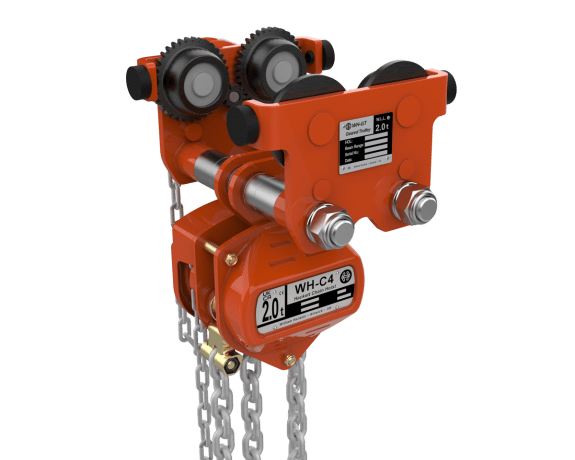

WH C4 Combined Chain Hoist and Push/Geared Trolley

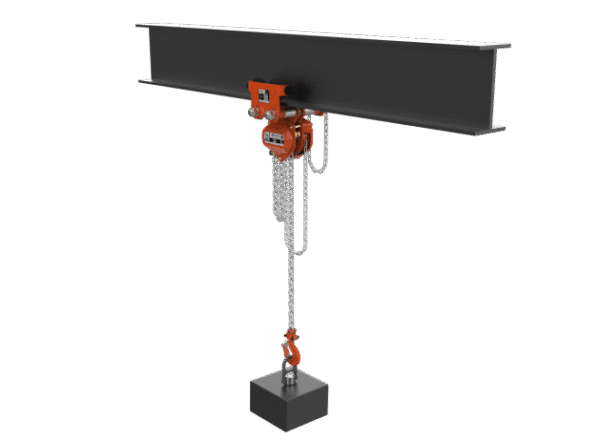

The William Hackett Combined block and Chain hoists are designed, manufactured and proof load teste in the UK. Supplied as a complete assembled unit, the top hook is removed from the Chain hoist and is replaced with a bespoke hanging plate. This plate allows the bars on the trolley to suspend the hoist and reduce lost headroom. The hoists can be fitted into both our WH PT Push Trolleys and our WH GT Geared Trolleys. We provide a full range of spare parts and can offer training on safe use and inspection.
- Description
Description
Features
- Standards: British Standard BS EN 13157:2004 + AI:2009.
- Proof Tested: 1.5 x WLL.
- Safety factor: 4:1.
- Temperature range: -20°C to +120°C.
- Track width range: 70mm – 305mm (2.8 inches to 12 inches). Trolleys available with standard (range 1) or extended (range 2) trolley bars to fit a range of beam widths.
- End stops: Fitted as standard.
- Anti-tilt: Fitted as an optional extra.
- Attachment: Hanging plate fitted into chain hoist.

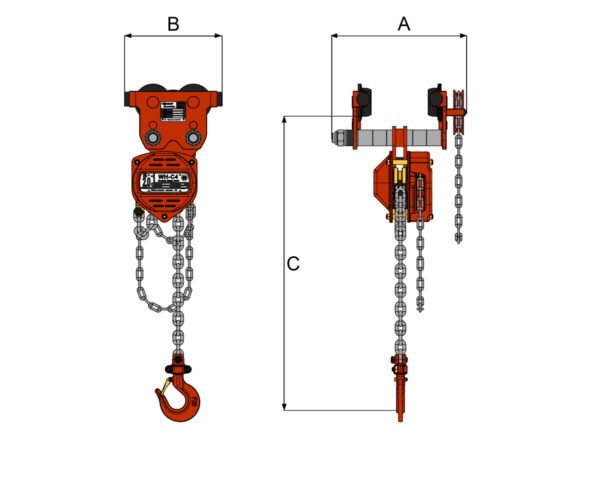

Specifications
WH C4 Combined Chain Hoist and Push/Geared Trolley CH & PT
| WLL tonnes | No. of Falls | Beam Range 1 mm | Beam Range 2 mm | A max mm | B mm | C mm | Mass kg | |
|---|---|---|---|---|---|---|---|---|
| 0.50 | 1 | 70 - 203 | - | 294 | 199 | 295 | 14.7 | |
| 1.00 | 1 | 88 - 203 | 88 - 305 | 309 | 221 | 340 | 20.1 | |
| 2.00 | 1 | 88 - 203 | 88 - 305 | 327 | 288 | 437 | 31.4 | |
| 3.20 | 2 | 100 - 203 | 100 - 305 | 351 | 334 | 493 | 49.4 | |
| 5.00 | 2 | 114 - 203 | 114 - 305 | 366 | 407 | 573 | 76.7 | |
| 10.00 | 4 | 124 - 203 | 124 - 305 | 392 | 525 | 892 | 137.4 |
WH C4 Combined Chain Hoist and Push/Geared Trolley CH & GT
| WLL tonnes | No. of Falls | Beam Range 1 mm | Beam Range 2 mm | A max mm | B mm | C mm | Mass kg | |
|---|---|---|---|---|---|---|---|---|
| 0.50 | 1 | 70 - 203 | - | 322 | 199 | 295 | 15.4 | |
| 1.00 | 1 | 88 - 203 | 88 - 305 | 326 | 221 | 340 | 20.9 | |
| 2.00 | 1 | 88 - 203 | 88 - 305 | 346 | 288 | 437 | 32.5 | |
| 3.20 | 2 | 100 - 203 | 100 - 305 | 365 | 334 | 493 | 50.6 | |
| 5.00 | 2 | 114 - 203 | 114 - 305 | 381 | 407 | 573 | 78.0 | |
| 10.00 | 4 | 124 - 203 | 124 - 305 | 403 | 525 | 892 | 139.4 |
