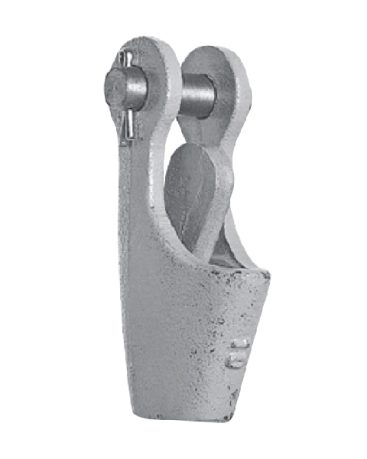

Open Type Wedge Sockets are manufactured from cast alloy steel and designed to suit wire rope sizes ranging from 10mm to 38mm. Used in general lifting and rigging tasks.
- Description
Description
Features
- Cast Alloy Steel
- Available for rope sizes 10mm – 38mm
- 100% Magnetic particle inspected in accordance with AS 1171
- Ultrasonically tested in accordance with AS 2574
- Manufactured to meet the performance requirements of AS 1666 Wire Rope Slings
- Surface finish options include self colour, galvanized and painted

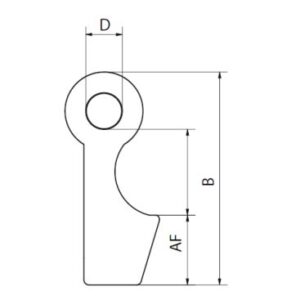

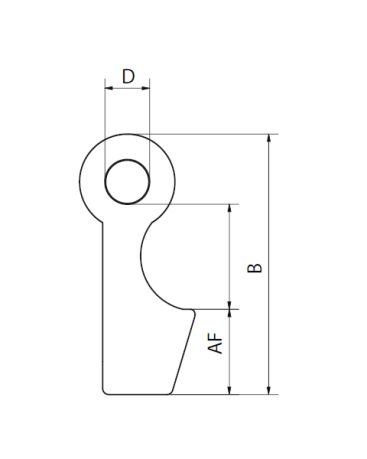

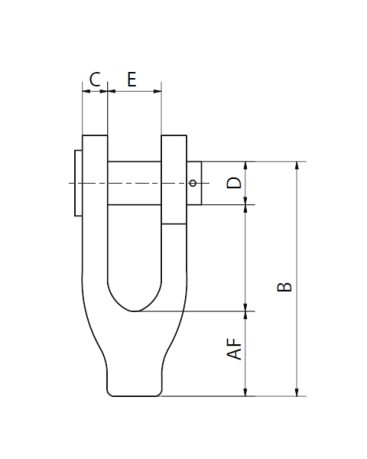

Specifications
| WIRE DIA (mm) | D (mm) | J (mm) | H (mm) | P (mm) | S (mm) | M (mm) | R (mm) | WLL (t) |
|---|---|---|---|---|---|---|---|---|
| 10 | 16 | 22 | 52 | 8 | 135 | 60 | 22 | 2.6 |
| 13 | 24 | 45 | 90 | 24 | 206 | 75 | 45 | 10.3 |
| 16 | 33 | 54 | 85 | 30 | 235 | 85 | 54 | 13.4 |
| 20 | 36 | 67 | 120 | 35 | 300 | 110 | 67 | 20 |
| 22 | 36 | 67 | 142 | 35 | 340 | 140 | 67 | 21.3 |
| 26-28 | 42 | 77 | 144 | 43 | 350 | 135 | 77 | 33.7 |
| 32 | 56 | 70 | 200 | 45 | 445 | 200 | 70 | 39.6 |
| 38 | 60 | 105 | 210 | 58 | 540 | 240 | 105 | 57.4 |
