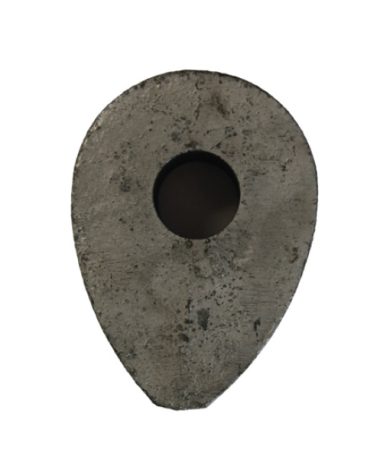

Solid Heart Thimbles are used in crane rope terminations and applications requiring limited articulation. Ideal for pairing with rigging screws and turnbuckles.
- Description
Description
Features
- Conforms to AS1138
- Made from heat treated high tensile steel material
- Sizes available are from 8mm to 48mm
- Hot dipped galvanized finish
Specifications
| SIZE (mm) | PRE DRILLED HOLE SIZE (mm) | A (mm) | B (mm) | C (mm) | E (mm) | W (mm) |
|---|---|---|---|---|---|---|
| 8 | n/a | 56 | 40 | 15 | 9 | 10 |
| 10 | n/a | 70 | 50 | 17.5 | 11 | 10 |
| 12 | n/a | 84 | 60 | 20 | 13 | 10 |
| 14 | n/a | 98 | 70 | 23.5 | 18 | 10 |
| 16 | 28 | 110 | 80 | 26 | 18 | 28 |
| 18 | 30 | 130 | 90 | 28.5 | 20 | 30 |
| 20 | 30 | 140 | 100 | 31 | 22 | 30 |
| 22 | 32 | 150 | 110 | 33.5 | 24 | 32 |
| 24 | 41 | 170 | 120 | 36 | 26 | 41 |
| 26 | 44 | 180 | 130 | 39.5 | 29 | 44 |
| 28 | 47 | 200 | 140 | 42 | 31 | 47 |
| 32 | 53 | 220 | 160 | 47 | 35 | 53 |
| 36 | 59 | 250 | 180 | 53 | 40 | 50 |
| 40 | 65 | 280 | 200 | 58 | 44 | 65 |
| 44 | 70 | 310 | 220 | 63 | 48 | 70 |
