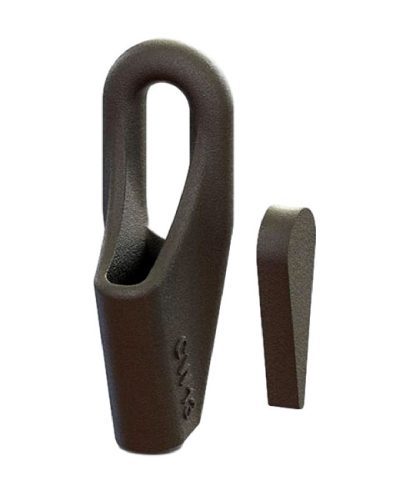

Closed Type Wedge Sockets are made from cast alloy steel and suitable for wire rope sizes between 10mm and 38mm. Designed for secure terminations in lifting systems.
- Description
Description
Features
- Cast Alloy Steel
- Available for rope sizes 10mm – 38mm
- 100% Magnetic particle inspected in accordance with AS 1171
- Ultrasonically tested in accordance with AS 2574
- Manufactured to meet the performance requirements of AS 1666 Wire Rope Slings
- Surface finish options include self colour, galvanized and painted
Specifications
| ROPE DIA (mm) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | SWL (t) |
|---|---|---|---|---|---|---|
| 6 | 41 | 90 | 13 | 12 | 40 | 1.27 |
| 10 | 61 | 127 | 15 | 17 | 51 | 1.69 |
| 13 | 75 | 165 | 19 | 21 | 71 | 2.72 |
| 16 | 86 | 220 | 21 | 44 | 111 | 3.32 |
| 20 | 100 | 245 | 25 | 36 | 116 | 4.71 |
