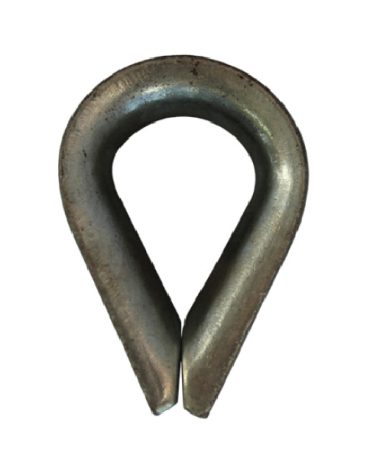

Commercial thimbles offer a cost-effective solution for light-duty applications. Used in rope eye terminations where heavy load resistance is not critical.
- Description
Description
Features
- Zinc plated finish and made from light gauge steel
- Sizes available are from 2mm to 24mm
- Tolerances may vary for commercial products
NOTE: NOT FOR LIFTING PURPOSES
Specifications
| SIZE | WEIGHT (kg/pc) | B (mm) | H (mm) | D (mm) |
|---|---|---|---|---|
| 2 | 0.002 | 2 | 10 | 8 |
| 3 | 0.003 | 3 | 13 | 10 |
| 4 | 0.006 | 4 | 16 | 11 |
| 5 | 0.015 | 5 | 22 | 16 |
| 6 | 0.018 | 6 | 26 | 19 |
| 8 | 0.03 | 8 | 34 | 24 |
| 10 | 0.043 | 10 | 42 | 32 |
| 12 | 0.062 | 12 | 51 | 38 |
| 16 | 0.105 | 16 | 60 | 42 |
| 20 | 0.215 | 20 | 71 | 50 |
| 22 | 0.34 | 22 | 79 | 62 |
| 24 | 0.48 | 24 | 82 | 71 |
