HMPE COIL SLINGS

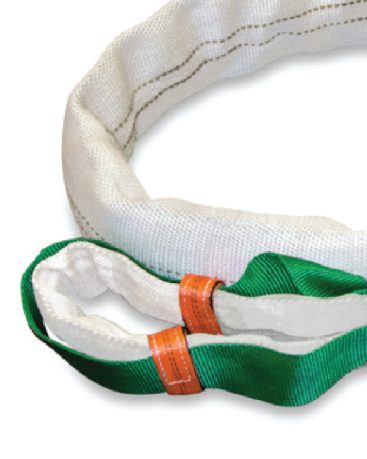

The Ultralift Coil Sling is purpose-built for lifting heavy and sharp-edged loads, such as steel coils. It features a two-part construction: a lightweight Dyneema® sling paired with an UltraProtect heavy-duty wear sleeve that covers both legs of the sling. This integrated sleeve is exceptionally resistant to cuts and abrasion, eliminating the need for additional protective gear. Proven in the field for over a decade, the Ultralift Coil Sling is a trusted alternative to traditional braided steel-wire rope mats, widely adopted by major steel manufacturers for its durability, safety, and ease of use.
- Description
Description
Features
- Round Slings up to 180t Safety Factor 7:1
- Extremely durable and resistant to moisture, UV light and chemical attack
Specifications
| WLL | SLEEVE WIDTH OF ULLD ROUND SLING (mm) | SLEEVE WIDTH WITH EXTRA UPHD PROTECTION SLEEVE (mm) | WEIGHT OF SLING AT LENGTH (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 2.5m | 3m | 3.5m | 4m | 4.5m | 5m | 5.5m | |||
| 10t | 75 - 85 | 115 - 125 | 4.9 | 5.9 | 6.9 | 7.9 | 8.8 | 9.8 | 10.8 |
| 15t | 90 - 100 | 145 - 155 | 6.2 | 7.4 | 8.7 | 9.9 | 11.2 | 12.4 | 13.7 |
| 20t | 90 - 100 | 145 - 155 | 6.4 | 7.7 | 9.1 | 10.5 | 11.8 | 13.2 | 14.6 |
| 25t | 115 - 125 | 175 - 185 | 8.6 | 10.3 | 12 | 13.7 | 15.5 | 17.2 | 18.9 |
| 30t | 115 - 125 | 175 - 185 | 9.2 | 11 | 12.9 | 14.7 | 16.5 | 18.4 | 20.2 |
| WLL | WEIGHT OF SLING AT LENGTH (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 6m | 6.5m | 7m | 7.5m | 8m | 8.5m | 9m | 9.5m | 10m | |
| 10t | 11.8 | 12.7 | 13.7 | 14.7 | 15.7 | 16.7 | 17.6 | 18.6 | 19.6 |
| 15t | 14.9 | 16.1 | 17.4 | 18.6 | 19.9 | 21.1 | 22.4 | 23.6 | 24.8 |
| 20t | 15.9 | 17.3 | 18.7 | 20 | 21.4 | 22.7 | 24.1 | 25.5 | 26.8 |
| 25t | 20.6 | 22.4 | 24.1 | 25.8 | 27.5 | 29.3 | 31 | 32.7 | 34.4 |
| 30t | 22.1 | 23.9 | 25.8 | 27.6 | 29.5 | 31.3 | 33.1 | 35 | 36.8 |
Contact LiftQuip to discuss your requirements
